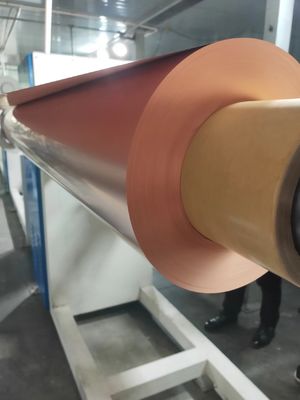

1 / 2 OZ 17um PCB Copper Foil High Temperature Elongation Gray Color

1 / 2 OZ 17um PCB Copper Foil High Temperature Elongation Gray Color

  • 1 / 2 OZ 17um PCB Copper Foil High Temperature Elongation Gray Color
  • 1 / 2 OZ 17um PCB Copper Foil High Temperature Elongation Gray Color
  • 1 / 2 OZ 17um PCB Copper Foil High Temperature Elongation Gray Color
  • 1 / 2 OZ 17um PCB Copper Foil High Temperature Elongation Gray Color
1 / 2 OZ 17um PCB Copper Foil High Temperature Elongation Gray Color
Product Details:
Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Pinholes: None
Anti Oxidation: 180 Degree 60 Minutes, 180 Days 23 Degree Thickness: 1/2 Oz,3/4 Oz,1 Oz,2 Oz,
High Light:

copper foil for pcb

,

pcb copper clad

1/2 OZ high temperature elongation gray ED copper foil for Epoxy board



Detail Specification:



. Standard width:1290mm.

. Thickness: 17um,1/2 OZ.

. ID: 76 mm,152 mm.

. purity:99.8%.



Classify:



(HTE-E)-high temperature elongation electrodeposited copper foil.

(LP-E)-low profile electrodeposited copper foil.

(VLP-E)-very low profile electrodeposited copper foil.



what's Application:



.PCB and antenna PCB.

.CCL.



FAQ:



Q4: Can you supply the sample?

A: We can supply samples to check the quality before bulk order



Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.



Q6. what is your standard width?

A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.



Package:





HTE ED copper foil (high elongation copper foil at high temperature)

Thickness um 9 12 18 25 35 70

IPC 4562

4.6.3.1



Area weight g/m² 80±1 107±3 153± 215±5 285±5 585±8

IPC 4562

4.6.3.2

Roughness (RA) μm 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4

IPC 4562

4.6.9

(RZ) μm <6.0 <6.5 <8.0 <9.0 ≤10.0 <15



Copper≧

% 99.8

IPC 4562

4.6.3.1



Tensile Strength state normal Mpa >300 >300 >300 >300 >300 >280

IPC 4562

4.6.4

state temper (180℃) Mpa >15.0 >18.0 >18.0 >18.0 >18.0 >18.0
ElongationI state normal % >3.0 >3.0 >5.0 >6.0 >10.0 >10.0

IPC 4562

3.5.3

state temper (180℃) % >2.0 >2.5 >2.5 >3.0 >5.0 >5.0
Peel strength N/mm >1.0 >1.05 >1.35 >1.70 >1.8 >2.0

IPC 4562

4.6.7

High temperature oxidation resistance(200℃,

40min)

No color change Standard
Solderability Good Standard
Solderability Good

IPC 4562

4.6.12

3. Standard Width,1295(±1)mm,May according to the customer request tailor.

We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.
