1 OZ STD PCB Copper Foil More Than 1.5% Elongation ISO / SGS Approval

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

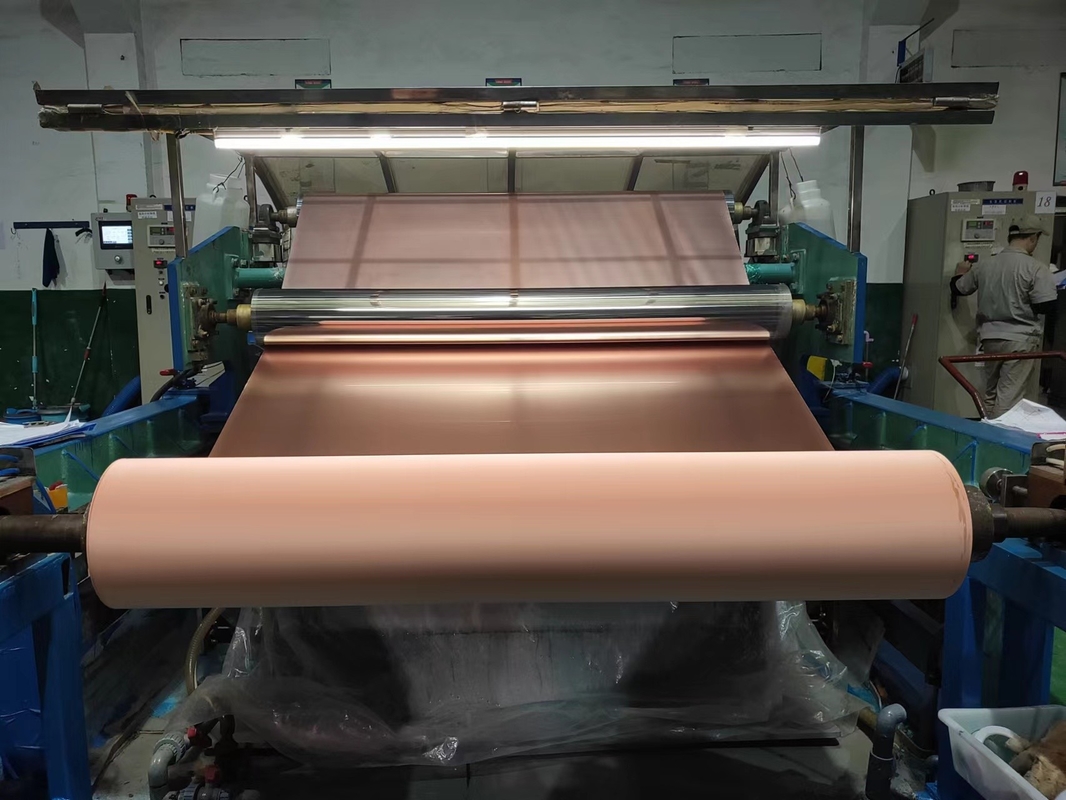

1 OZ STD PCB Copper Foil More Than 1.5% Elongation ISO / SGS Approval

China 1 OZ STD PCB Copper Foil More Than 1.5% Elongation ISO / SGS Approval supplier

Large Image :  1 OZ STD PCB Copper Foil More Than 1.5% Elongation ISO / SGS Approval

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Pinholes: None
Color: Red Elongation: ≥ 1.5%
Foil Profile: RA≤0.15μm,Rz≤1.7μm Application:: Pcb
Inter Diameter: 76 Mm,152 Mm, 3 Inch,6 Inch

1oz STD ED electrodeposited copper foil for pcb



Quickly details

Type Standard electrodeposited (STD) ED Copper Foils
Thickness 1oz
Width Range 5~1380mm
Performance The perfect normal temperature storage performance
The high temperature anti-oxidization performance
The high temperature elongation performance
Quality standard Reach the Ⅱ and Ⅲ requirements of the international standard IPC-4562





Features:

1. High peel strength

2. Excellent adhesion to etching resist



Application:

Epoxy board



Compare between CA copper foil and ED copper foil



Strength toughness: rolled copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.



Package:wooden carton





FAQ:



Q1. Can you provide COA?

Yes , we can.



Q2. Is it the Fumigation carton box?

Yes ,it is .



Q3. How to save after the box opened?

Keep the dry environment,and is better use it in 30days.





Typical properties of Standard copper foil for phenolic resin board and epoxy board.



Classification



Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ

1

OZ

2

OZ

3

OZ

IPC-4562A
Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength

R.T.(23℃)



Mpa ≥150 ≥220 ≥235 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥2 ≥3 ≥3 ≥4 ≥4 ≥4

IPC-TM-650

2.3.18

Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162

IPC-TM-650

2.5.14

Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1

IPC-TM-650

2.4.8

Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 /
H.T.(200℃) Minutes 60 /

1. Standard Width,1295(±1)mm,May according to the customer request tailor.

2. We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.
