HD Thin Copper Sheet For Polyimide Board Min 160 MPa Tensile Strength

China HD Thin Copper Sheet For Polyimide Board Min 160 MPa Tensile Strength supplier

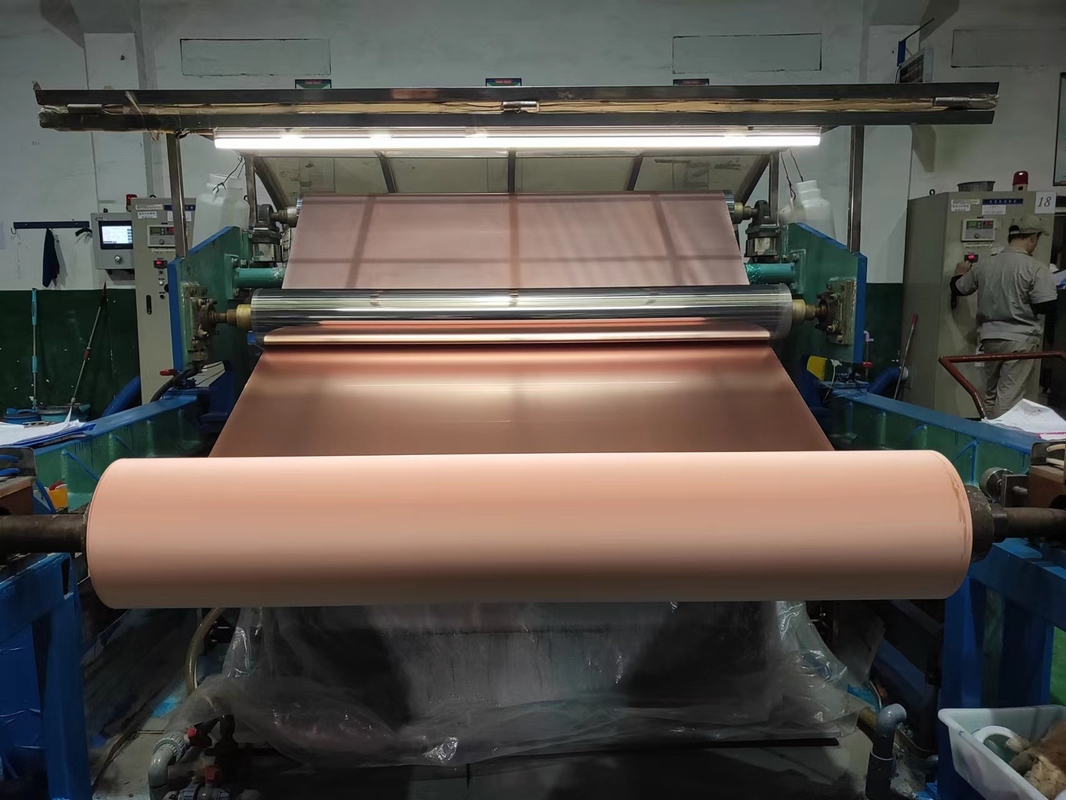

Large Image :  HD Thin Copper Sheet For Polyimide Board Min 160 MPa Tensile Strength

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Pinholes: None
Color: Red Or Black Elongation: ≥ 1.5%
Tensile Strength: ≥ 160 MPa Peel Strength: ≥ 1 N/mm
Inter Diameter: 76 Mm,152 Mm, 3 Inch,6 Inch

1/2oz HD electrolytic copper foil for Polyimide board and Epoxy board



There are various types of copper foil are offered; in a range of weights (thicknesses). Their characteristics differ, and an understanding of these differences is important to ensure the correct selection of copper foil for each application or environmental condition.



Crystalline Structure
Electrodeposited copper crystals tend to grow lengthwise in the Z-axis of the foil. Typically, a polished section of
electrodeposited copper foil has the appearance of a picket fence, with long crystal boundaries perpendicular to
the foil plane. Rolled copper crystals are broken and crushed during the cold rolling operation. They are smaller
than the electrodeposited crystals, and have irregular, spherical shapes, nearly parallel to the foil plane.



Copper Foil Roughness Measurements
An optical profiler can be used to analyze the three-dimensional surface profile of a copper foil to subsequently
determnie its RMS roughness. RMS or Rq is the “root-mean-squared” roughness calculated over the profiled
area. The surface morphology of half ounce electrodeposited copper on figure 1 clearly shows that the treated
side has granular dendritic structure and the untreated side has a smoother surface.





Application:

1. Polyimide board

2. Epoxy board





Difference between CA copper foil and ED copper foil

Property Electrodeposited Rolled
  8um 18um 35um 70um 18um 35um 70um
Tensile strength,kpsi 15 33 40 40 20 22 28
Elongation,% 2 2 3 3 8 13 27

Vol resistivity

Mohm.cm

  1.66 1.62 1.62 1.78 1.74 1.74





Package:wooden carton







FAQ:




Q1: What's your delivery time ?


A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.


Q2: What's your minimum order quantity?


A: The MOQ is 150 kg.



Q3: Are the package suitable For export ?

Yes , it is suitable for export.





Typical properties of high ductility copper foil



Classification



Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ

1

OZ

2

OZ

3

OZ

IPC-4562A
Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength

R.T.(23℃)



Mpa ≥150 ≥150 ≥235 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥5 ≥5 ≥10 ≥10 ≥15 ≥15

IPC-TM-650

2.3.18

Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162

IPC-TM-650

2.5.14

Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1

IPC-TM-650

2.4.8

Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 /
H.T.(200℃) Minutes 60 /

3. Standard Width,1380(±1)mm,May according to the customer request tailor.

We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.
