Gray Treated Single Side PCB Copper Foil 500 - 5000 Meter Length Per Roll

China Gray Treated Single Side PCB Copper Foil 500 - 5000 Meter Length Per Roll supplier

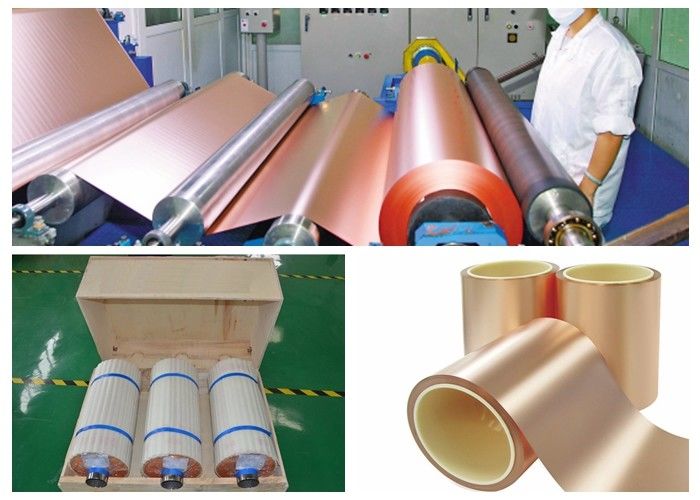

Large Image :  Gray Treated Single Side PCB Copper Foil 500 - 5000 Meter Length Per Roll

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: RAPCB

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: Negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Foil Profile: RA≤0.2μm
Application: PCB CCL Length Per Roll: 500 - 5000 Meter
Inter Diameter: 76 Mm,152 Mm, 3 Inch,6 Inch

Thickness 0.035mm (35 μm,1 OZ ) single side gray treated Rolled Copper foil For CCL Epoxy board



Single side treatment low profile foil in gray.



Quickly details



Thickness: 0.0350mm

Width: 10-520mm

Length: 500-5000 M

Temper: H



Features:



. Lamellar crystal structure of rolled copper foil leads to high flexibility

. Excellent etching performance

. Single side treatment low profile enables to make fine circuit pattern



Application:



Copper Clad Laminate(CCL), Printed Circuit board(PCB)



· CEM-3

· Auto

· IC Substrate

· High Speed Circuit Material





FAQ:





Q1: If provide sample test ?



A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.



Q2. Do you test all your goods before delivery?


A: Yes, we have 100% test before delivery.



Q3. what is your standard width?



A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.





Copper foil technical sheet (All size )for PCB,CCL



Thickness 0.009-0.09mm Width≤520mm
Item Unit Parameter
Thickness MM 0.009 0.012 0.018 0.035 0.07 0.1
Grade C1100 C1100 C1100 C1100 C1100 C1100
Copper content % ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 80±2 107±4 160±5 311±10 623±19 890±27
Roughness (RA) Um ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2
Tensile Strength(MP) State normal Mpa ≥380 ≥400 ≥400 ≥420 ≥430 ≥450
State temper (180℃) Mpa ≥160 ≥160 ≥160 ≥170 ≥180 ≥190
Elongation(%) State normal % ≥0.8 ≥1.0 ≥1.2 ≥1.3 ≥1.4 ≥1.5
State temper(180℃) % ≥5 ≥6 ≥8 ≥15 ≥20 ≥25
Peel strength N/mm ≥0.8 ≥1.0 ≥1.4 ≥1.5 ≥1.8 ≥2.0
High temperature oxidation resistance(180℃ 1hour) Qualified Qualified Qualified Qualified Qualified Qualified



Remark: we accept customization and RD new product from your demand.



The testing of peel strength use FR-4(Tg140℃) and FR-4(Tg170℃) prepreg.
