| Place of Origin: | china |
| Brand Name: | JIMA |
| Certification: | SGS, ISO,Reach, RoHS |
| Model Number: | RAPCB |
| Minimum Order Quantity: | 100kg |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 Ton per month |
| Color: | Red，black，gray | Elongation: | ≥ 0.8% |
|---|---|---|---|
| Tensile Strength: | ≥ 160 MPa | Peel Strength: | ≥ 1 N/mm |
| High Light: | copper foil for pcb,pcb copper clad |
||

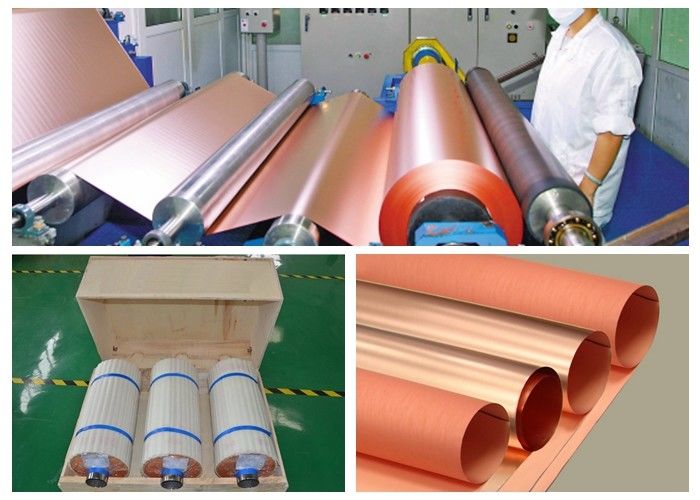

0.070mm(70um,2 OZ) single side black treated Rolled Copper foil For Phenolic resin board
(Copper foil Single side treatment low profile foil in back)
Quickly details
. Foil Thickness: 0.070 mm
. Foil Width: 5-520 mm
. Foil Length: 500-5000 M
. Foil ID: 76 mm,152.4 mm
. Foil Alloy: T2,C11000,C1100,C101,E-Cu58
. Foil Temper: H
Features:
. The treated foil in back
. This product With Excellent etching performance
. Make fine circuit pattern because the Low profile
Application:
Copper foil for CCL (Copper Clad Laminate),PCB(Printed Circuit board)
· Al-based CCL
· Thermal Conductive RCC
· Thermal Conductive FR-4
· CEM-1
FAQ:
Q1: What's your minimum order quantity?
A: The MOQ is 150 kg.
Q2: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
All size technical sheet for PCB,CCL,Polyimide board,Epoxy board
| Thickness | 0.009-0.09mm | Width≤520mm | ||||||
| Item | Unit | Parameter | ||||||
| Thickness | MM | 0.009 | 0.012 | 0.018 | 0.035 | 0.07 | 0.1 | |
| Grade | － | C1100 | C1100 | C1100 | C1100 | C1100 | C1100 | |
| Copper content | % | ≥99.95 | ≥99.95 | ≥99.95 | ≥99.95 | ≥99.95 | ≥99.95 | |
| Area Weight | g/㎡ | 80±2 | 107±4 | 160±5 | 311±10 | 623±19 | 890±27 | |
| Roughness | (RA) | Um | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Tensile Strength(MP) | State normal | Mpa | ≥380 | ≥400 | ≥400 | ≥420 | ≥430 | ≥450 |
| State temper (180℃) | Mpa | ≥160 | ≥160 | ≥160 | ≥170 | ≥180 | ≥190 | |
| Elongation(%) | State normal | % | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.3 | ≥1.4 | ≥1.5 |
| State temper(180℃) | % | ≥5 | ≥6 | ≥8 | ≥15 | ≥20 | ≥25 | |
| Peel strength | N/mm | ≥0.8 | ≥1.0 | ≥1.4 | ≥1.5 | ≥1.8 | ≥2.0 | |
| High temperature oxidation resistance(180℃ 1hour) | － | Qualified | Qualified | Qualified | Qualified | Qualified | Qualified | |
Remark:Standard Width,520(±1)mm,accept customization.
