Nano Graphite Carbon Coated Aluminum Foil 12 - 100μM Thickness ISO Approval

China Nano Graphite Carbon Coated Aluminum Foil 12 - 100μM Thickness ISO Approval supplier

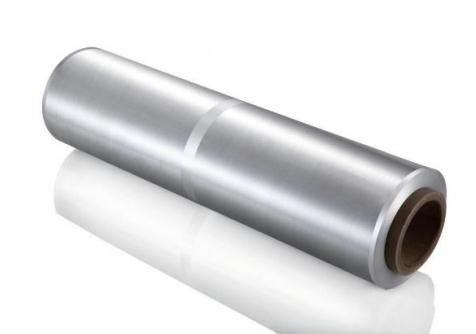

Large Image :  Nano Graphite Carbon Coated Aluminum Foil 12 - 100μM Thickness ISO Approval

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: NAMOALCAW1

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: usd 22-30 kg
Packaging Details: wooden carton
Delivery Time: 20-30 days
Supply Ability: 300 Ton per month
Contact Now
Detailed Product Description
Purity: 99.9% Pinholes: None
Thickness: 12-100μm Conductivity: 30 S/CM
Corrosion Resistance: No Exfoliation Peel Strength: ≥ 2 N/mm
Application: XEV: Hybrid-electric Vehicle.(HEV) ,Parallel Hybrid Electric Vehicle(PHEV) ,Electric Vehicle(EV),Lithium-ion Batteries Supercapacitor

Modified AI Foils


current collector conductive Modified coated Nano graphite aluminum Foil for Lithium-ion batteries Super



CAW1 is one of the highest-quality “CA” series product, it took five years for the research and development of the product , Nano graphite with excellent performance is produced and used as raw material for the functional coating. Due to high conductivity and small size of the Nano graphite ,the obtained functional coating is very thin and highly conductive. The thickness of the functional coating is about 400nm,resulting in improvement of both energy density and power density .we have independent intellectual property for this technology.



A. (LFP.LMO.NCM.NCA.LNM.LTO):for electric vehicles and energy storage(LFP.LMO.NCM.NCA.LNM.LTO)

B. (LCO.NCM):Lithium-ion batteries for 3C productions(LCO.NCM)

C. supercapacitor

D. Lithium-ion supercapacitor




1. Improve the surface tension, and increase the adhesion between the aluminium foil and the active material.

2. Decrease the using amount of binder for the electrode ,enhance energy density of the battery ,and lower the cost of the electrode production

3. Protect the AI current collector from surface corrosion and oxidation.

4. Reduce interface resistance and internal resistance of the cell.

5. Decrease polarization and improve the rate capability and specific capacity of the electrode material

6. Mitigate exothermic reactions and enhance the battery safety

7. Improve the production stability and reproducibility ,and raise the pass rate of the cell

8. Increase the consistency and cycling life of the cell,and lower the cost of the production.


Nano Graphite Carbon Coated Aluminum Foil 12 - 100μM Thickness ISO Approval


Physical and chemical properties of CAW1 product.


Nano Graphite Carbon Coated Aluminum Foil 12 - 100μM Thickness ISO Approval



important cautions:



1.1 Use the product under the temperature of 20-25℃ and humidity of ≤20%RH

1.2 The coating layer is highly Hydrophilic, handle it under personal protection.

1.3 Avoid using the product under dust, The dust purification should be over 0.1M.

1.4 Avoid any collisions against hard materials. Handle the product gently.

1.5 This product is developed by our company for the application in batteries , if application in other fields, please discuss with us for it .


Packaging marketing:

The product type,quantity ,production date and place etc, are indicated on the package.

usage and storage:

2.1 Use the product in the workshop with humidity of ≤20%RH and a high dust purification.

2.2 Store the product below 35℃, do not open the vacuum package before use .after use ,the left product should be dried at 40-60℃ for 2 hours under vacuum ,then kept in the cabinet filled with nitrogen at room temperature.

2.3 The product can be stored under vacuum package for one year at ambient temperature and moisture without direct sun. Once the vacuum package is opened, the product can be kept under vacuum cabinet for at most one month.
