Water Based Electrolyte Pe Coated Aluminium Foil 0.1 - 1.2m Roll Width

China Water Based Electrolyte Pe Coated Aluminium Foil 0.1 - 1.2m Roll Width supplier

Large Image :  Water Based Electrolyte Pe Coated Aluminium Foil 0.1 - 1.2m Roll Width

Product Details:

Place of Origin: CHINA
Brand Name: JIMA
Model Number: CWA2

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: usd 26 per kg
Packaging Details: wooden box
Delivery Time: 20-30 days
Supply Ability: 100 ton per month
Contact Now
Detailed Product Description
Basis Materials Thickness: 0.012-0.040 Mm Roll Width: 0.1-1.2m
Roll Treatment: Coating Coating Materials:: Conventional Carbon

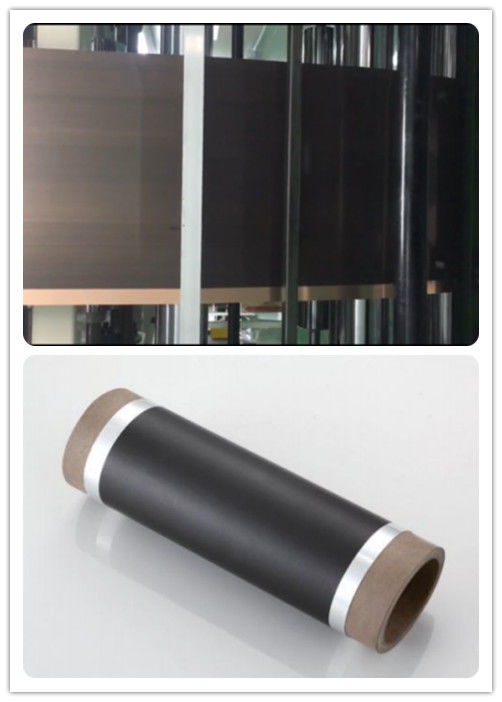

Water based electrolyte carbon coated aluminium foil for Lithium-ion batteries Cathode Substrate



Product Type:CAW2.



Quickly details.



Color:black.

substrate Materials Thickness: 12-40 um.

Roll Max Width: 1250 mm.



Features:



1. Improve the production stability.

2. Improve the production reproducibility.

3. Raise the pass rate of the cell.





Application:



Lithium-ion batteries Cathode Substrate.



Physical and chemical properties (MTC of CAW2 ).



Planar density
(Both side)
1.0g/m2
1.0±0.2mg/cm2
1.5g/m2
1.5±0.3mg/cm2
2.0g/m2
2.0±0.3mg/cm2
2.5g/m2
2.5±0.3mg/cm2
Covering rate min.80% min.90% Min.100% min.100
Conductivity ~30S/cm ~30S/cm ~30S/cm ~30S/cm
Peeling Strength 2.0N 2.0 N 2.5N 2.5N
Corrosion resistance No exfoliation No exfoliation No exfoliation No exfoliation



Important Matters:



Water Based Electrolyte Pe Coated Aluminium Foil 0.1 - 1.2m Roll Width



Usage note:



Store the product below 35℃, do not open the vacuum package before use .after use ,the left product should be dried at 40-60℃ for 2 hours under vacuum ,then kept in the cabinet filled with nitrogen at room temperature. The product can be stored under vacuum package for one year at ambient temperature and moisture without direct sun. Once the vacuum package is opened, the product can be kept under vacuum cabinet for at most one month. Use the product in the workshop with humidity of ≤20%RH and a high dust purification.



Package:wooden carton.



Water Based Electrolyte Pe Coated Aluminium Foil 0.1 - 1.2m Roll Width





FAQ:



Q1: What's your guarantee?



A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.



Q2.what is the Internal diameter?

76/152/ custom



Q3. Can we come to China visit factory ?

Yes ,you can .
