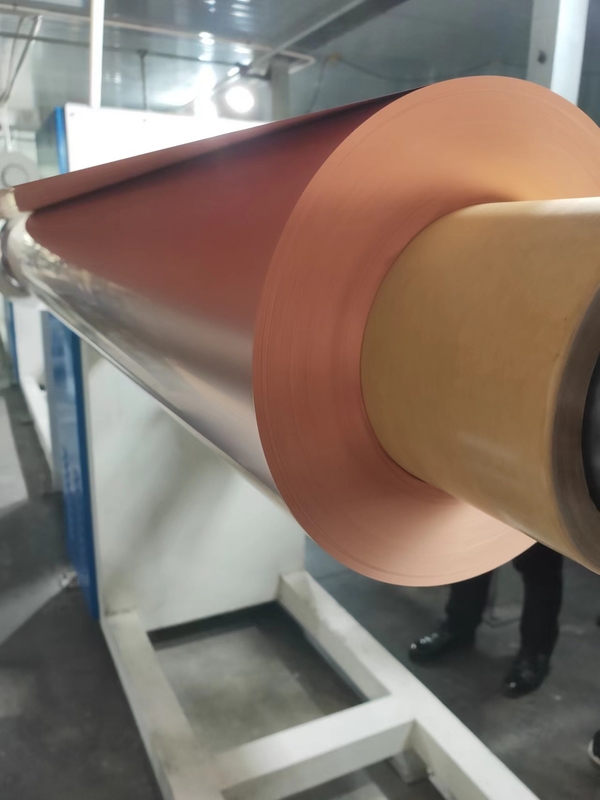

Electrodeposited Thin Copper Foil Double Shiny Good Oxidation Resistance

China Electrodeposited Thin Copper Foil Double Shiny Good Oxidation Resistance supplier

Large Image :  Electrodeposited Thin Copper Foil Double Shiny Good Oxidation Resistance

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCUHTE

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: usd 15-20 kg
Packaging Details: wooden carton
Delivery Time: 5-15 days
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.9% Pinholes: None
Anti Oxidation: 160 Degree 15 Minutes, 90 Days 23 Degree Thickness: 6μm,7μm,8μm,9μm,10μm,12μm,15μm,20μm,1/2 Oz,3/4 Oz,1 Oz,2 Oz,3 Oz,
Color: Red Elongation: ≥ 5%
Tensile Strength: ≥ 200 MPa Peel Strength: ≥ 1 N/mm
Application: 1.Lib: Notebook PC, Mobile Phone. 2.Lip: Mobile Phone 3.XEV: Hybrid-electric Vehicle.(HEV) 4.Parallel Hybrid Electric Vehicle(PHEV) 5.Electric Vehicle(EV)



LB double shiny electrodeposited ED electrolytic copper foil for lithium battery



Features:

1. double shiny side ,superior rupture endurance.

2. Stable properties suitable for high capacity rechargeable battery .

3. Eco-friendly products and processes.

4. Excellent uniformity and infiltration.

Application:

1. Lib: notebook PC, mobile phone.

2. Lip: mobile phone

3. XEV: hybrid-electric vehicle.(HEV)

4. Parallel hybrid electric vehicle(PHEV)

5. Electric vehicle(EV)

Electrodeposited Thin Copper Foil Double Shiny Good Oxidation Resistance

Typical properties of electrolytic ED copper foil lithium battery

Classification Unit Requirement   Test Method
Foil Designation /               IPC-4562A
Nominal thickness / 6um 7um 8um 9/10um 12um 15um 20um IPC-4562A
Area Weight g/㎡ 54±1 63±1.25 72±1.5 89±1.8 107±2.2 133±2.8 178±3.6

IPC-TM-650

2.2.12.2

Purity ≥99.9

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) um 0.1-0.4

IPC-TM-650

2.3.17

Matte side(Rz) um 0.8-2.0
Tensile Strength R.T.(23℃) Mpa >280

IPC-TM-650

2.3.18

H.T.(180℃) >200
Elongation R.T.(23℃) >5

IPC-TM-650

2.3.18

H.T.(180℃) >3
Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 90   /
H.T.(160℃) Minutes 15   /

6. Max Width,1295(±1)mm,May according to the customer request tailor.
