100µ Thickness Electrolytic Copper Foil 300mm Width For Epoxy Board None Pinholes

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

100µ Thickness Electrolytic Copper Foil 300mm Width For Epoxy Board None Pinholes

China 100µ Thickness Electrolytic Copper Foil 300mm Width For Epoxy Board None Pinholes supplier

Large Image :  100µ Thickness Electrolytic Copper Foil 300mm Width For Epoxy Board None Pinholes

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 7-20 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Pinholes: None Thickness: 100um,100micron,100 µ
Elongation: Min.2% Inter Diameter: 76 Mm, 3 Inch,
Products Name: Electrolytic Copper Foil Of 100 µ With Width Of The Foil 300 Mm For Using In Conductive Foil Solutions Application: Using In Conductive Foil Solutions
Splice: No Width: 300mm

  • Product Name

Electrolytic copper foil of 100 µ with Width of the foil 300 mm for using in conductive foil solutions.





  • Specifications
  1. Thickness: 100micron,100um,100u
  2. W: standard width is 1290mm,accept custom
  3. L: 500-5000 M
  4. ID: 76 mm
  5. roll weight ,accept custom
  6. splice:No
  7. Elongation:min.2%



  • Application:

Epoxy board,copper clad laminates,CCL



  • Typical properties of Standard electrolytic copper foil for copper clad laminates/CCL

Classification



Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ

1

OZ

2

OZ

3

OZ

IPC-4562A
Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength

R.T.(23℃)



Mpa ≥150 ≥220 ≥235 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥2 ≥3 ≥3 ≥4 ≥4 ≥4

IPC-TM-650

2.3.18

Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162

IPC-TM-650

2.5.14

Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1

IPC-TM-650

2.4.8

Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 /
H.T.(200℃) Minutes 60 /

1. Standard Width,1290(±1)mm,May according to the customer request tailor.

  • FAQ:

Q2: Can you supply the sample?

A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.



Q3:What's your sandard package ?

A:wooden box,also accept your custom.

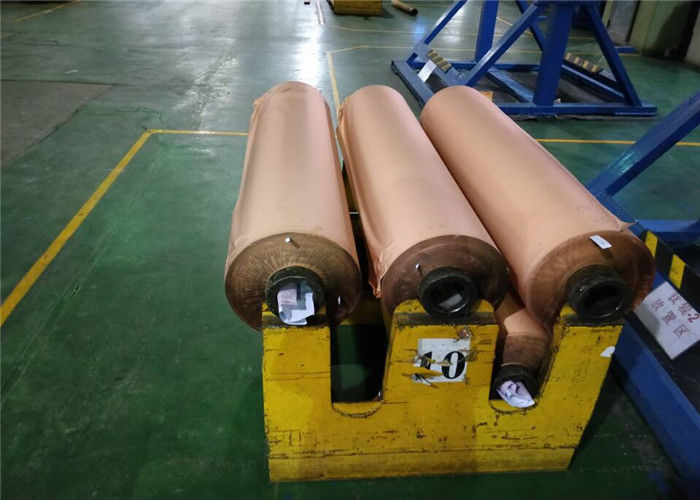

  • Package & copper foil photo show :

100µ Thickness Electrolytic Copper Foil 300mm Width For Epoxy Board None Pinholes
