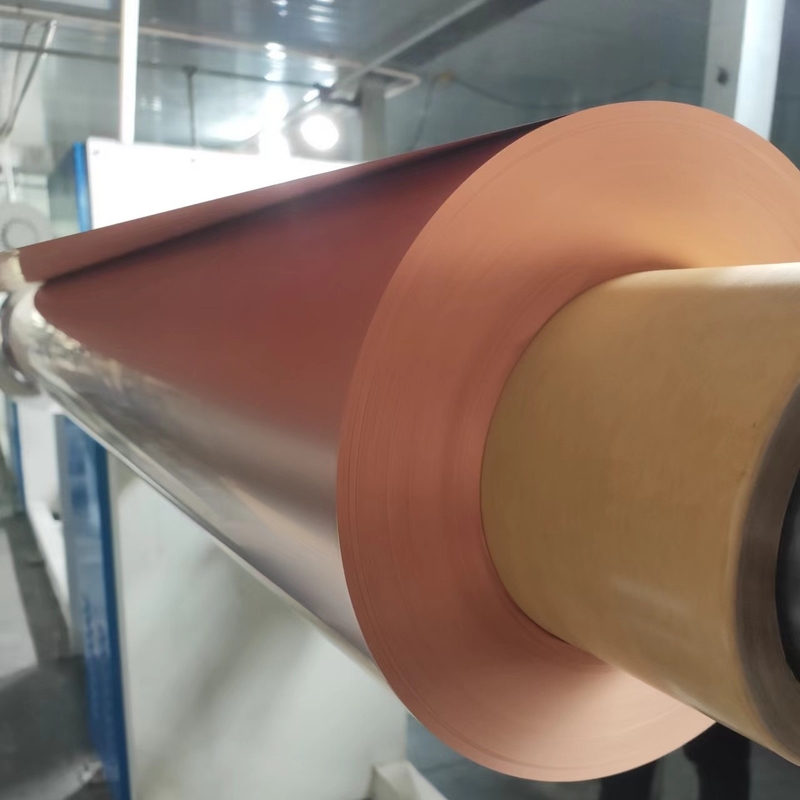

1 OZ Electrolytic Copper Foil For Fccl Grain Structure High Flexibility

China 1 OZ Electrolytic Copper Foil For Fccl Grain Structure High Flexibility supplier

Large Image :  1 OZ Electrolytic Copper Foil For Fccl Grain Structure High Flexibility

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Anti Oxidation: 180 Degree 60 Minutes, 180 Days 23 Degree Tensile Strength: ≥ 160 MPa
Peel Strength: ≥ 1 N/mm Application:: FCCL,FPC
Length Per Roll: 500 - 5000 Meter Inter Diameter: 76 Mm,152 Mm, 3 Inch,6 Inch

Grain structure leads to high flexibility 1 OZ electrolytic copper foil for fccl.





Products Specifications introduction.



1> Matte side treated in back/red.

2> Thickness: 1OZ.

3> Width Range: 5-1380 mm,standard width:1290mm.

4> ID: 76 mm,152 mm.

5> Cu Content: Min 99.8%.



VLP ED Copper foil Application:



high-frequency board,Used for multilayer circuit boards,Flexible Copper Clad Laminate.



Very Low profile Copper Foils Features.



Grain structure of copper foil leads to high flexibility,Very Low profile enables to make fine circuit pattern,Good folding endurance and Zinc-free.





Typical properties of VLP-S-B/R copper foil for FPC or inner layer of HDI.



Classification



Unit Requirement Test Method
Foil Designation /   1 H M 1 IPC-4562A
Nominal thickness / 10um 12um 1/2 OZ (18um) 3/4 OZ(25um) 1 OZ(35um) IPC-4562A
Area Weight g/㎡ 98±4 107±4 153±5 228±8 285±10

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side(Ra) սm ≤2.5 ≤2.5 ≤2.5 ≤2.5 ≤2.5

IPC-TM-650

2.3.17

Matte side(Rz) um ≤2.5 ≤2.5 ≤2.5 ≤2.5 ≤2.5
Tensile Strength R.T.(23℃) Mpa ≥300 ≥300 ≥300 ≥300 ≥300

IPC-TM-650

2.3.18

H.T.(180℃) Mpa ≥200 ≥200 ≥200 ≥200 ≥200
Elongation R.T.(23℃) ≥4 ≥5 ≥6 ≥8 ≥10

IPC-TM-650

2.3.18

H.T.(180℃) ≥5 ≥6 ≥7 ≥8 ≥8
Peel Strength(FR-4) N/mm ≥0.8

IPC-TM-650

2.4.8

Ibs/in ≥4.6
Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) 180days /
H.T.(200℃) 60 Minutes /



Remark:Standard width 1295(±1)mm,MAX width 1370mm,May according to the customer request tailor.We test the peel strength with PI ,please reconfirm with your pp.



Packaging:





RFQ:



Q9.Are the package suitable For export ?



Yes , it is suitable for export.



Q2: What's your delivery time ?



The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.



Q12. Is it the Fumigation carton box?



Yes ,it is .
