1290mm Width Copper Foil Shielding 105um Thickness 76mm Coil For MRI Rooms

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

1290mm Width Copper Foil Shielding 105um Thickness 76mm Coil For MRI Rooms

China 1290mm Width Copper Foil Shielding 105um Thickness 76mm Coil For MRI Rooms supplier

Large Image :  1290mm Width Copper Foil Shielding 105um Thickness 76mm Coil For MRI Rooms

Product Details:

Place of Origin: CHINA
Brand Name: JIMA
Certification: ISO9001:2008,ISO14001:2004,T28001-2011
Model Number: EDSCP

Payment & Shipping Terms:

Minimum Order Quantity: Negotiations
Price: Negotiations
Packaging Details: wooden box
Delivery Time: 10~20days
Payment Terms: L/C, T/T
Supply Ability: 6000MT per year
Contact Now
Detailed Product Description
Name: 105um Copper Shielding Copper Foil With Width 1290mm For Modern MRI Rooms (copper Cages) Shielding Standard: GB/T5230-1995,IPC-456
Package: Standard Wooden Box Coil ID: 76MM
Application: Modern MRI Rooms (copper Cages) Shielding Thickness: 105um

Products Name

105um Copper Shielding Copper Foil with 1290mm Width For Modern MRI Rooms (copper cages) Shielding



Specification:

1.  Common Thickness:105um,3oz,0.105mm

2.  Common Width:1290mm,1070mm,1040mm,1100,1300mm,1350mm,max.1380mm,

     accept cut into as per width size.

3.  Common application:modern MRI rooms (copper cages) Shielding

4.  Standard:GB/T5230-1995,IPC-456

5.  Standard Roll weight for width 1290mm :260kgs,can custom.



Typical properties of Standard Electrolytic Shielding Copper foil

Classification



Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ

1

OZ

2

OZ

3

OZ

IPC-4562A
Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

  Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength

R.T.(23℃)



Mpa ≥150 ≥220 ≥235 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥2 ≥3 ≥3 ≥4 ≥4 ≥4

IPC-TM-650

2.3.18

Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162

IPC-TM-650

2.5.14

Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1

IPC-TM-650

2.4.8

Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 /
  H.T.(200℃) Minutes 60 /



FAQ:

Q1: What's your guarantee?

A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.



Q2: What's your delivery time ?

A: The common delivery time is 10-20 days. The specific delivery time depends on the items and the quantity of your order.



Q4: Can you supply the sample?

A: We can supply samples to check the quality before bulk order.



Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.



Q6. what is your standard width?

A: 1290mm,we accept customization for the width. we can cut it into any size as per your request.



Q7. Max.roll weight per roll?

A:Our factory standard is 260kgs,can custom. based on width.



Q8.what is the Internal diameter?


A:76MM

Q11. Can you provide COA?
A: Yes , we can.



Q13. Can we come to China visit factory ?
A:Yes ,you can .



Q14. Can you cut into small size?
A:Yes, we can.



Package Mark

1290mm Width Copper Foil Shielding 105um Thickness 76mm Coil For MRI Rooms

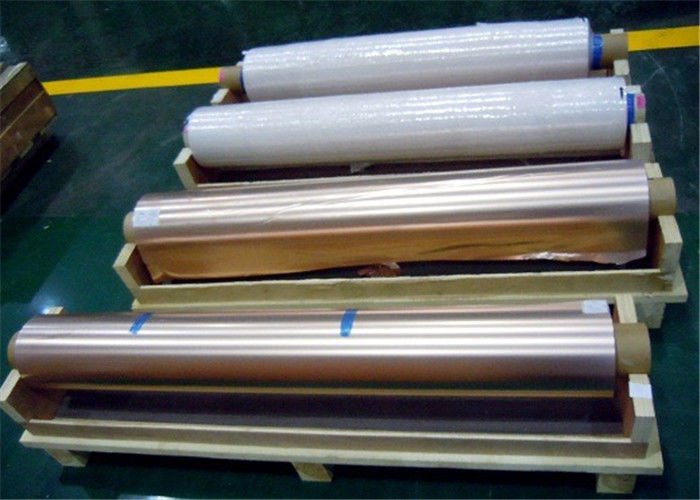

 Copper foil package pictures
