Both Side Coated Aluminum Foil 20um Thickness For Lithium - Ion Super Capacitor

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

Both Side Coated Aluminum Foil 20um Thickness For Lithium - Ion Super Capacitor

China Both Side Coated Aluminum Foil 20um Thickness For Lithium - Ion Super Capacitor supplier

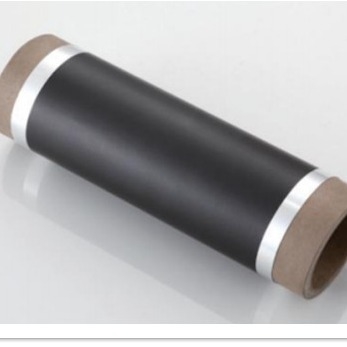

Large Image :  Both Side Coated Aluminum Foil 20um Thickness For Lithium - Ion Super Capacitor

Product Details:

Place of Origin: China
Brand Name: JIMA
Certification: ISO9001:2008,ISO14001:2004
Model Number: CCAL

Payment & Shipping Terms:

Minimum Order Quantity: Negotiations
Price: Negotiations
Packaging Details: wooden box
Delivery Time: 30days
Supply Ability: 200MT/Month
Contact Now
Detailed Product Description
Standard: Q/FS ZJXM 001-2017 Both Side Coating: 0.3~1.5um
Stype: CAW1 Name: 20um ThickCarbon Coated Aluminum Foil For Supercapacitor Application With Both Side Coating Of CAW1
Aluminum Foil Thickness: 20um Width: 260mm,200mm,600mm,400mm



20um Thick Carbon Coated Aluminum Foil for supercapacitor application with both side coating of CAW1







Products quickly



1.aluminum foil Thickness:20um,18

2.Width:600mm,400mm,200mm,260mm

3.both side coating:0.3~1.5um,1um



Application



1.LFP.LMO.NCM.NCA.LNM.LTO

for electric vehicles and energy storage(LFP.LMO.NCM.NCA.LNM.LTO)

2. 3C Li-lon battery (LCO.NCM):

Lithium-ion batteries for 3C productions(LCO.NCM)

3. Super capacitor

4. Lithium-ion super capacitor

5. Li-lon battery for electric vehicle

Type:CAW1 Introduction



”CAW1 ”is one of the highest-quality “CA” series product, it took five years for the research and development of the product , Nano graphite with excellent performance is produced and used as raw material for the functional coating. Due to high conductivity and small size of the Nano graphite ,the obtained functional coating is very thin and highly conductive. The thickness of the functional coating is about 400mm,resulting in improvement of both energy density and power density .we have independent intellectual property for this technology.



Physical and Chemical properties of CAW1 products.

Planar density
(Both side)
0.5g/m2
0.5±0.2mg/cm2
1.0g/m2
1.0±0.2mg/cm2
1.5g/m2
1.5±0.3mg/cm2
2.0g/m2
2±0.3mg/cm2
Covering rate min.80% min.901% min.95% min.100
Conductivity ~30S/cm ~30S/cm ~30S/cm ~30S/cm
Peeling Strength 2.0N 2.5 N 2.8N 2.8N
Corrosion resistance No exfoliation No exfoliation No exfoliation No exfoliation



Packing Marked:

The product type,quantity ,production date and Origin place etc, are indicated on the package.



Products usage and storage:

.   Use the product in the workshop with humidity of ≤20%RH and a high dust purification.

.    Store the product below 35℃, do not open the vacuum package before use .after use ,the left product should be dried at 40-60℃ for 2 hours under vacuum ,then kept in the cabinet filled with nitrogen at room temperature.

.    The product can be stored under vacuum package for one year at ambient temperature and moisture without direct sun. Once the vacuum package is opened, the product can be kept under vacuum cabinet for at most one month.



Package pictures:

Both Side Coated Aluminum Foil 20um Thickness For Lithium - Ion Super Capacitor

Important Matters:

1.Use the product under the temperature of 20-25℃ and humidity of ≤20%RH

2.The coating layer is highly Hydrophilic, handle it under personal protection.

3.Avoid using the product under dust, The dust purification should be over 0.1M.

4. Avoid any collisions against hard materials. Handle the product gently.

5.This product is developed by our company for the application in batteries , if application in other fields, please contract with us for it .



FAQ:



1.We can provide free sample.



2. Coating thickness can as per your request,Max.coating thickness is 400mm



3.Welcome to visit our factory



4.we can provide maetrical COA and MTC .



Productsion photo show:



Both Side Coated Aluminum Foil 20um Thickness For Lithium - Ion Super Capacitor
