76mm Coil ID Copper Shielding Foil 1350mm Width With Standard Wooden Box Package

China 76mm Coil ID Copper Shielding Foil 1350mm Width With Standard Wooden Box Package supplier

Large Image :  76mm Coil ID Copper Shielding Foil 1350mm Width With Standard Wooden Box Package

Product Details:

Place of Origin: CHINA
Brand Name: JIMA
Certification: ISO9001:2008,ISO14001:2004,T28001-2011
Model Number: EDSCP

Payment & Shipping Terms:

Minimum Order Quantity: 50kgs
Price: Negotiations
Packaging Details: wooden box
Delivery Time: 10~20days
Payment Terms: L/C, T/T
Supply Ability: 6000MT per year
Contact Now
Detailed Product Description
Name: Electrolytic Copper Shielding Foil 1350MM Width And 3oz Thickness For Mri Room Shielding Standard: GB/T5230-1995,IPC-456
Package: Standard Wooden Box Sample MOQ: 50kgs
Coil ID: 76MM

  • Products Name



Electrolytic Copper Shielding foil 1350MM width and 3oz thickness for Mri Room Shielding.



Specification:

1.  Common Thickness:105um,3oz,0.105mm

2.  Common Width:1290mm,1300mm,1350mm,MAX.1380mm,can cut into as per width size.

3.   Common application:Sheilding

4.   Standard:GB/T5230-1995,IPC-456

5.   Sample MOQ:50kgs

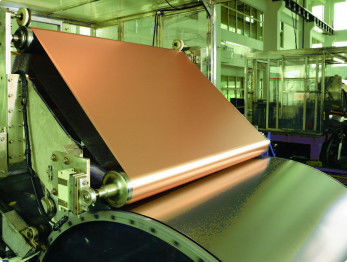

  • Workshop Production pictures:

76mm Coil ID Copper Shielding Foil 1350mm Width With Standard Wooden Box Package76mm Coil ID Copper Shielding Foil 1350mm Width With Standard Wooden Box Package



  • Typical properties of Standard Electrolytic Copper Shielding foil



Classification



Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ

1

OZ

2

OZ

3

OZ

IPC-4562A
Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

  Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength

R.T.(23℃)



Mpa ≥150 ≥220 ≥235 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥2 ≥3 ≥3 ≥4 ≥4 ≥4

IPC-TM-650

2.3.18

Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162

IPC-TM-650

2.5.14

Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1

IPC-TM-650

2.4.8

Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 /
  H.T.(200℃) Minutes 60 /



  • Package &specificaton Detail: Standard wooden box.

76mm Coil ID Copper Shielding Foil 1350mm Width With Standard Wooden Box Package



  • FAQ:

Q1: What's your guarantee?

A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.

Q2: What's your delivery time ?

A: The common delivery time is 10-20  days. The specific delivery time depends on the items and the quantity of your order.

Q4: Can you supply the sample?

A: We can supply samples to check the quality before bulk order.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q6. what is your standard width?

A: 1290mm,we accept customization for the width. we can cut it into any size as per your request

Q7. Length per roll?
500-5000meter

Q8.what is the Internal diameter?
76/152/ custom

Q11. Can you provide COA?
Yes , we can.

Q13. Can we come to China visit factory ?
Yes ,you can .

Q14. Can you cut into small size?
Yes, we can.
