| Place of Origin: | CHINA |
| Brand Name: | ED-JIMA |
| Certification: | SGS, ISO,Reach, RoHS |
| Minimum Order Quantity: | 200kgs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 7-30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 per month |
| Thickness: | 18um,0.018mm | Standard: | IPC-4562,IPC-TM-650 |
|---|---|---|---|
| Weight: | Max Roll Weight:500kgs | Products Name: | Electrolytic Copper Foil 18 Microns Thick ，1100 Mm Wide |
| High Light: | pure copper foil,copper sheet plate |
||
Product Description

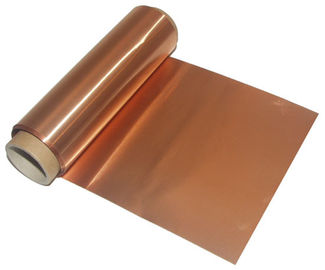

Electrolytic copper foil 18 microns thick 1100 mm wide
| 1. The treated foil in gray or red | 1. PCB board | ||
| 2. High peel strength | 3. Antennas pcb | ||
| Features: | 3. Good etch ability | 4. Polyimide board | |
| 4. Excellent adhesion to etching resist | Application: | 6. CCL | |
| 5. Anti foil cracking by high elongation at elevated temperatu | 7. MCCL,Metal Copper Clad Laminate | ||
| 6. Eco-friendly products and processes | |||
Typical properties of High temperature elongation copper foil specification
| Thickness | um | 12 | 18 | 35 | 70 |
IPC-TM-650 2.3.12 |
|
| Area weight | g/m² | 107±10 | 153±15 | 305±30 | 610±61 |
IPC-TM-650 2.2.12 |
|
| Roughness | (RA) | μm | <0.43 | <0.43 | <0.43 | <0.43 |
IPC-TM-650 2.2.17 |
| (RZ) | μm | <7 | <8.0 | <10.0 | <14 | ||
|
Copper≥ |
% | Above99.8 |
IPC 4562 2.3.15 |
||||
| Tensile Strength | State normal | kg/mm2 | >21 | >21 | >28 | >28 |
IPC 4562 2.4.18 |
| State temper (180℃) | >15 | >15 | >15 | >15 | |||
| ElongationI | state normal | % | >3.0 | >4 | >5 | >5 |
IPC 4562 2.4.18 |
| state temper (180℃) | % | >2 | >2 | >3 | >3 | ||
| Peel strength | kg/cm | >1.1 | >1.3 | >1.7 | >1.9 |
IPC 4562 2.4.8
|
|
|
High temperature oxidation resistance(225℃, 10min) |
No color change | CCP Standard | |||||
| Solderability | Good | CCP Standard | |||||
| Splice | ≤2 | CCP Standard | |||||
Remark:
1.Standard Width,1295(±1)mm,max width is 1380mm,May according to the customer request tailor.
