Soft Temper Rolled Copper Foil 18um 12um 9um 35um For Tape Used For Phone

Soft Temper Rolled Copper Foil 18um 12um 9um 35um For Tape Used For Phone

  • High Light

    Rolled Copper Foil For Tape

    ,

    Copper Foil Roll For Phone

    ,

    Rolled Copper Foil 9um

  • Item
    Soft Temper Rolled Copper Foil 18um 12um 9um 35um For Tape Used For Phone
  • Application
    Conductive Tape And Phone
  • Thickness
    6um 18um 12um 9um 35um 50um 70um
  • Inter Diameter
    76 Mm,152 Mm,3 Inch,6 Inch,80mm
  • Place of Origin
    china
  • Brand Name
    JIMA
  • Certification
    SGS, ISO,Reach, RoHS
  • Model Number
    RACULP-S-B/G/R
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation

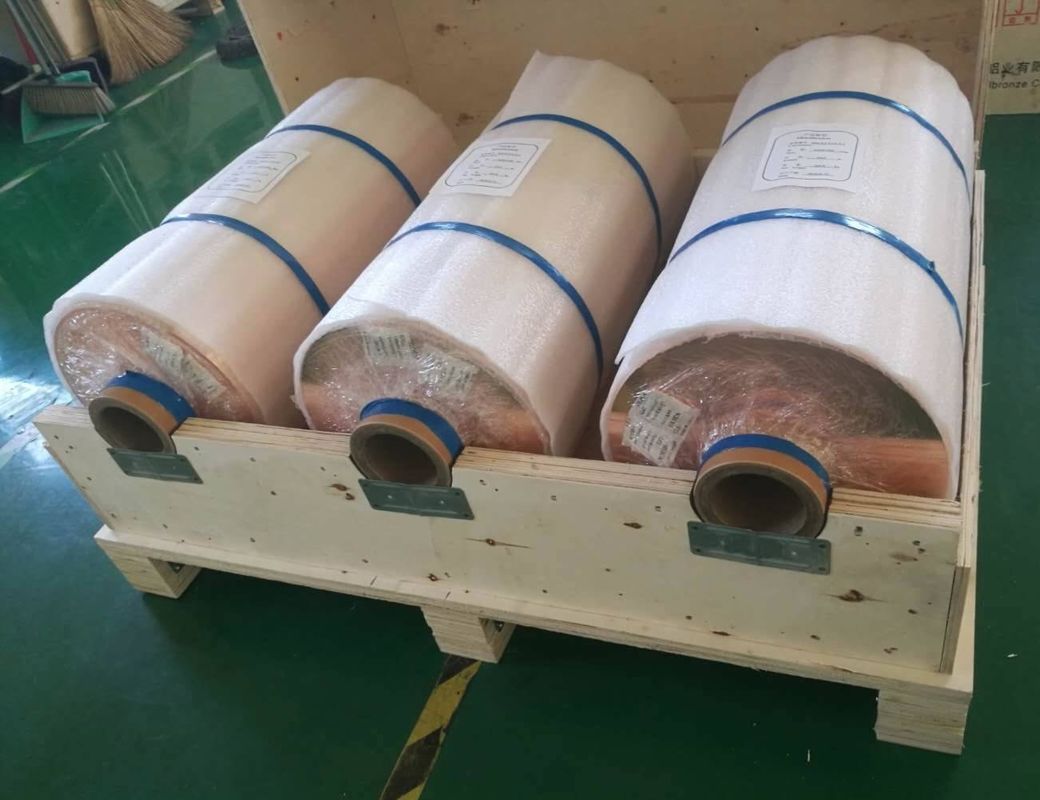

  • Packaging Details
    wooden carton
  • Delivery Time
    5-15 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000 Ton per month

Soft Temper Rolled Copper Foil 18um 12um 9um 35um For Tape Used For Phone

Soft temper Rolled Copper Foil 18um 12um 9um 35um for tape used for Phone



Quickly details



Thickness: 6um 18um 12um 9um 35um 50um 70um

Temper:  Sorft and Hard can be supply

Standard width: 520mm,can be cutting

ID:76MM

Length: can be customzie





Features:



. Grain structure Excellent uniformity

. Annealed

. Conductive

. Shielding



Uesed for : Conductive tape in phone





Compare between CA copper foil and ED copper foil



. Process: RA Cu foil (Rolling process), electronic Cu foil (Electrodeposition process)



. Strength toughness: RA Cu-foil with flaky crystalline structure, the strength and toughness is better than electrolytic Cu-foil, so most of the RA Cu-foil used in FPC and FCCL.



. Width: RA Cu-foil width: Max 620mm, electrolytic Cu-foil width Max 1380mm.







FAQ:





Q1: Can you supply the sample?



A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.


Q2: Leading  time ?


A: 7-15days



Q3: What's your minimum order quantity?


A: The minimum order quantity is 50 kg.





Conductive tape Copper foil Technical data sheet

Thickness 0.009-0.09mm Width≤620mm
Item Unit



Parameter


Thickness MM 0.009 0.012 0.020 0.035 0.07 0.09
Grade C1100 C1100 C1100 C1100 C1100 C1100



Copper content

% ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 80±2 107±4 178±6 311±10 623±19 801±24
Roughness (RA) Um ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2



Tensile Strength

Temper soft (O) Mpa 150-180 160-200 180-220 200-230 210-240 220-260



Elongation(%)

Temper soft (O) % ≥5 ≥6 ≥8 ≥15 ≥20 ≥25
Inter diameter mm 3in,6in,80mm
Storage condition T≤25℃,RH≤60%,180 days



Remark:we accept Other thickness products,  be customized.
