12um Hard temper Rolled Copper Foil using for Mobile antenna

12um Hard temper Rolled Copper Foil using for Mobile antenna
12um Hard temper Rolled Copper Foil using for Mobile antenna

Large Image :  12um Hard temper Rolled Copper Foil using for Mobile antenna

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: RACULP-S-B/G/R

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Detailed Product Description
Item: 12um Hard Temper Rolled Copper Foil Using For Mobile Antenna Application:: Conductive Tape And Mobile Antenna
Thickness: 6um 18um 12um 9um 35um 50um 70um Inter Diameter: 76mm,152mm

12um Hard temper Rolled Copper Foil using for Mobile antenna



Quickly details



Thickness: 6um 18um 12um 9um 35um 50um 70um

Temper:  Sorft and Hard can be supply

Standard width: 520mm,can be cutting

ID:76MM

Length: can be customzie





Features:



. Grain structure Excellent uniformity

. Annealed

. Conductive

. Shielding



Uesed for :

Conductive tape in Mobile antenna

apply to lithium battery

apply to electromagnetic shielding heat dissipation.





Compare between CA copper foil and ED copper foil



. Process: RA Cu foil (Rolling process), electronic Cu foil (Electrodeposition process)



. Strength toughness: RA Cu-foil with flaky crystalline structure, the strength and toughness is better than electrolytic Cu-foil, so most of the RA Cu-foil used in FPC and FCCL.



. Width: RA Cu-foil width: Max 620mm, electrolytic Cu-foil width Max 1380mm.





FAQ:





Q1: Can you supply the sample?



A: We can supply samples to check the quality before bulk order.



Q2: Leading  time ?


A: 7-15days



Q3: What's your minimum order quantity?


A: The minimum order quantity is 50 kg.





Conductive tape Copper foil Technical data sheet

Thickness 0.006-0.07mm Width≤620mm
Item Unit



Parameter


Thickness MM 0.009 0.012 0.020 0.035 0.07 0.09
Grade C1100 C1100 C1100 C1100 C1100 C1100



Copper content

% ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 80±2 107±4 178±6 311±10 623±19 801±24
Roughness (RA) Um ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2



Tensile Strength

Temper soft (O) Mpa 150-180 160-200 180-220 200-230 210-240 220-260



Elongation(%)

Temper soft (O) % ≥5 ≥6 ≥8 ≥15 ≥20 ≥25
Inter diameter mm 3in,6in,80mm
Storage condition T≤25℃,RH≤60%,180 days



Remark:we accept Other thickness products,  be customized.

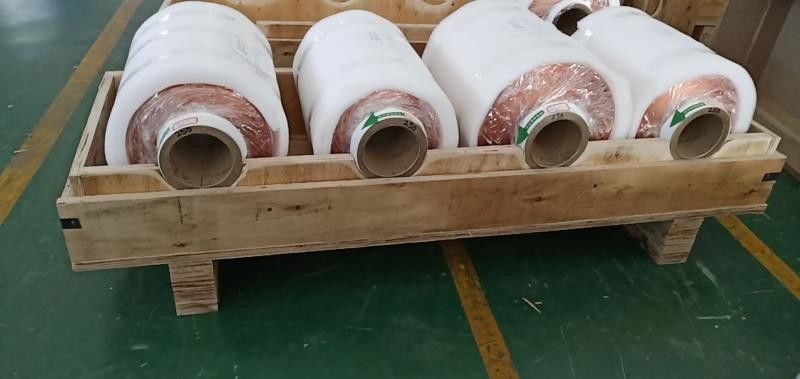

Products picture and package photos :



12um Hard temper Rolled Copper Foil using for Mobile antenna 0

12um Hard temper Rolled Copper Foil using for Mobile antenna 1
