0.03mm Thickness Soft Copper Foil For Transformers 2mm - 400mm Width

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

0.03mm Thickness Soft Copper Foil For Transformers 2mm - 400mm Width

China 0.03mm Thickness Soft Copper Foil For Transformers 2mm - 400mm Width supplier
0.03mm Thickness Soft Copper Foil For Transformers 2mm - 400mm Width supplier 0.03mm Thickness Soft Copper Foil For Transformers 2mm - 400mm Width supplier

Large Image :  0.03mm Thickness Soft Copper Foil For Transformers 2mm - 400mm Width

Product Details:

Place of Origin: China
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS,CQC
Model Number: RCU001

Payment & Shipping Terms:

Minimum Order Quantity: 500Kg
Price: Negotiations
Packaging Details: Wooden carton
Delivery Time: 7-15 days
Supply Ability: 500 Ton per month
Contact Now
Detailed Product Description
Thickness: 0.03mm Temper: O,soft
Inner Diameter: 40mm,76m,152mm Width: 2mm-400mm
Color: Red Copper Grade: C1100/C1020/C1220
Cu(Min): 99.95% Standard: GB/T18813-2002,GB/T5231-2001
Surface: Mill Finish

C1100 soft 0.03mm copper foil transformers copper foil for transformers



Copper Copper Foil Size And Tolerance (mm)

Thickness Thickness Tolerance Width Width Tolerance
0.01~0.015 ± 0.002 5 ~ 610 ± 0.1
0.018~0.10 ± 0.003 5 ~ 610
0.10~0.50 ± 0.005 5 ~ 610

 Copper Copper Foil Physical Property

1. Density: 8.9g/cm3
2. Electrical conductivity (20°C): min 90%IACS for annealed to temper
3. min 80%IACS for rolled to temper
4. Thermal conductivity (20°C): 610W/(m°C)
5. Elastic modulus: 118000N/m
6. Softening temperature: ≥380°C



  Chemical Composition

C1100 Copper foil Chemical composition(%)
Element Cu+Ag Sn Zn Pb Ni Fe As O
Standard Value ≥99.90 ≤0.002 ≤0.005 ≤0.005 ≤0.005 ≤0.005 ≤0.002 ≤0.06
Basic Information
Product Red copper coil/strip
Application

· Commutators

· Traction Motors

· Earthening

· Switchgear Products

· Railway Electrification

· Electrical Components

· Panel Boards

· Power Transformers

· Connectors

· Electrical Contacts

· Building & Constructions .

Technical Parameters
Material C11000,C12200,C12000,C10100(TU2,T2,TP1,TP2)etc
Standard

GB/T5231-2001,GB/T2059-2008,GB/T11091-2005,GB/T18813-2002, GB/T20254.1-2006,

and all relevant international standards

Temper M. Soft ; Y4. 1/4 Hard; Y2. 1/2 Hard; Y Hard;T Ultra hard; R Hot rolling
Thickness 0.05-2.5mm
Width 12.5-610mm
Cu (Min) 99.90%
Alloy Or Not Non-alloy

Package :wooden pallet

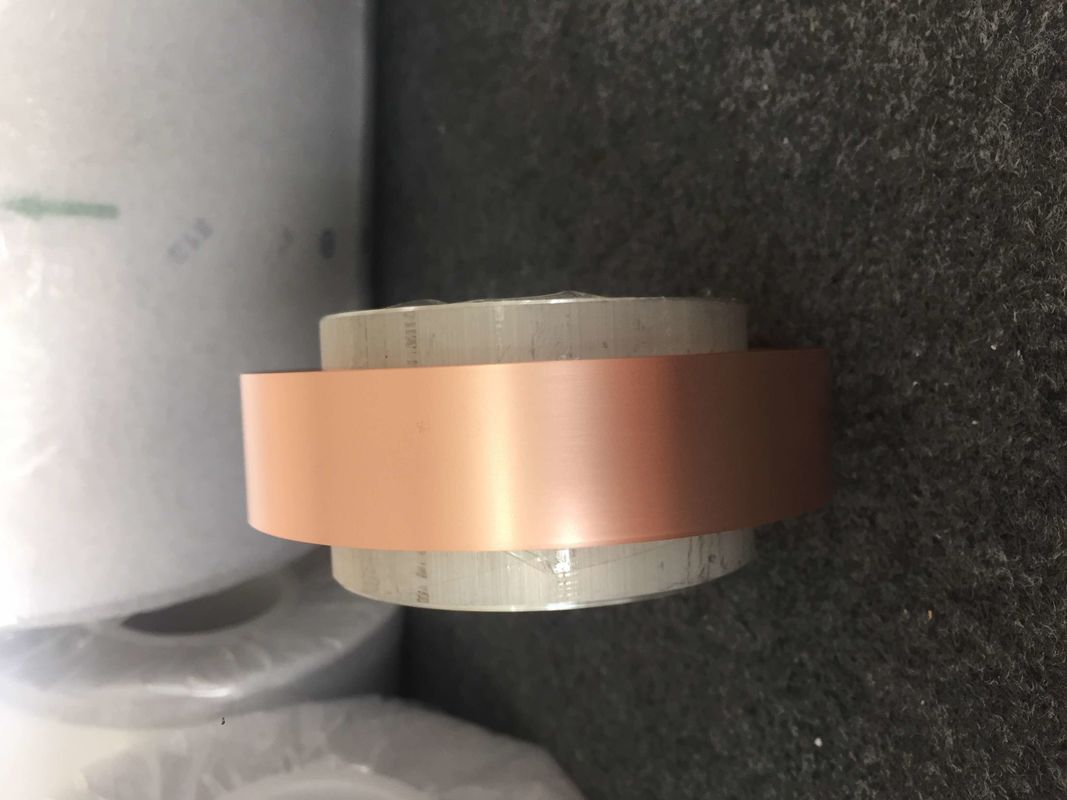

0.03mm Thickness Soft Copper Foil For Transformers 2mm - 400mm Width

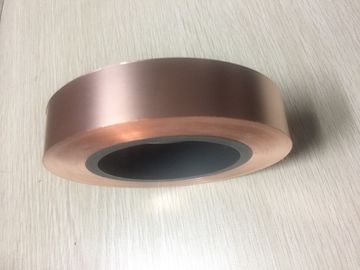

0.03mm Thickness Soft Copper Foil For Transformers 2mm - 400mm Width

RFQ:



Q1:what is your normal warranty period?

A:12months



Q2:are you manufacturer or trading company ?

A:manufacturer​,we have our own factory.welcome to visit us.

Q3.What's imformation do you need before quote?

A:yes,Temper,width,thickness, and order quantity



Q4:what is your minimum order quantity?

A:Yes,500kgs



Q5:what is your deliver time ?

A:7-15days
