C11000 Rolled Soft Copper Foil For PCB / c11000 copper foil 0.015 - 0.5mm Thickness

China C11000 Rolled Soft Copper Foil For PCB / c11000 copper foil 0.015 - 0.5mm Thickness supplier

Large Image :  C11000 Rolled Soft Copper Foil For PCB / c11000 copper foil 0.015 - 0.5mm Thickness

Product Details:

Place of Origin: Shanghai China
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS,CQC
Model Number: RCU001

Payment & Shipping Terms:

Minimum Order Quantity: 200Kg
Price: Negotiations
Packaging Details: Wooden carton
Delivery Time: 7-15 days
Supply Ability: 5000Ton per month
Contact Now
Detailed Product Description
Application: Transformer, PCB, Battery, Precision Color: Red Copper
Cu(Min): 99.95% Model Number: C11000
Width Range: 50 To 620mm Roll Weight: 100--5000kg/roll
Temper: Soft,O Thickness Range: 0.015mm ~ 0.5mm

C11000 Rolled Soft Copper Foil For PCB / c11000 copper foil 0.015 - 0.5mm Thickness

Qucikly introduction

 1>Range of application:
 radio frequency cable
 transformer
 lead frame
 copper cladding aluminum
 water heater exchanger
 automotive manufacturers
 2>Range rerfer to :
 thickness: 0.12--2mm
 width: 50 to 620mm
 weight: about 100--5000kg/roll
     Chemical    Composition (%)
Cu
99.9 min
O2
0.02-0.004




Physical Properties
Density g/cm3
8.94
Coefficient of thermal expansion 10-6 /℃ 20/℃-100/℃
 17.7
Electrical conductivity IACS%(20℃)
99
Thermal Conductivity W/(m*k)
390
Modulus of elasticity (KN/mm2)
118





Mechanical Properties

Temper
Tensile strength (RM, Mpa)
Yield Strength
(Rp0.2 Mpa)
Elongation A50
Vickers Hardness (HV)
O
195 min
-
35 min
60 max
1/4 H
215-255
-
25 min
60-80
1/2 H
255-315
-
15 min
80-100
H
290 min
-
5 min
100-130
EH
-
-
-
-

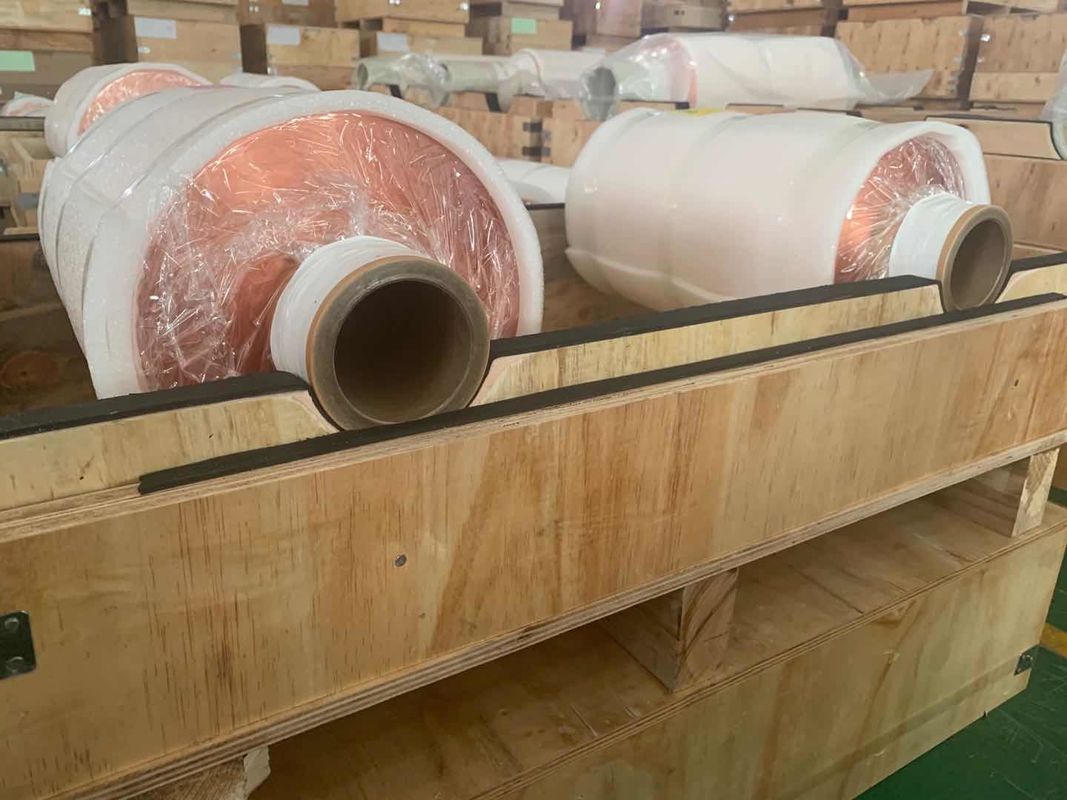

Our Package :wooden pallet and wooden carton

C11000 Rolled Soft Copper Foil For PCB / c11000 copper foil 0.015 - 0.5mm Thickness
C11000 Rolled Soft Copper Foil For PCB / c11000 copper foil 0.015 - 0.5mm Thickness
Our Laboratory
C11000 Rolled Soft Copper Foil For PCB / c11000 copper foil 0.015 - 0.5mm Thickness

FAQ
1.Can we​ have a sample order?
Yes, welcome to place sample orders to test and check our quality.MOQ is 200kgs
2.Can we visit your company before place the order?
Yes, welcome vist anytime.
3.How does your company control the quality?
Quality first. In order to guarantee high quality for our products, always makes a serious
inspection for all products and raw materials in strict procedure.
4.Information needed if I want a quotation?
Name, Standard, Material Grade(Chemical Composition), Size Quantity, Weight.

5.What,s your MOQ
Our MOQ is 200kgs
