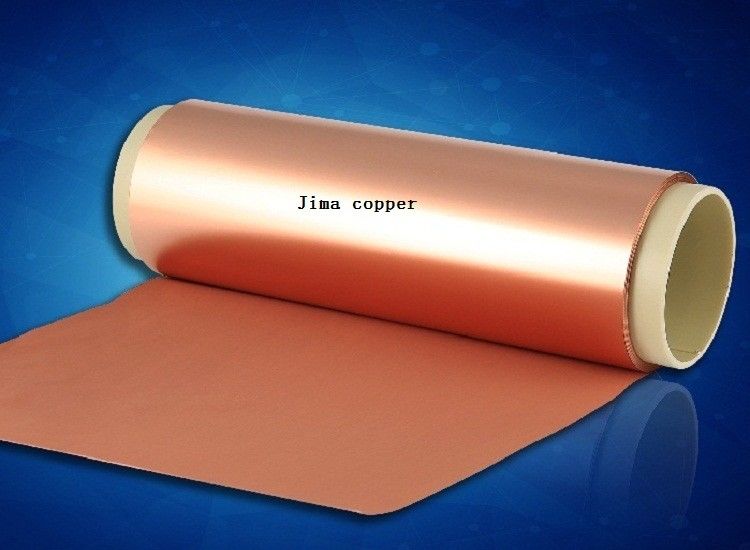

Single Side / Double Sided Flexible Laminated Copper Foil 0.3oz - 3oz Copper Thickness

China Single Side / Double Sided Flexible Laminated Copper Foil 0.3oz - 3oz Copper Thickness supplier

Large Image :  Single Side / Double Sided Flexible Laminated Copper Foil 0.3oz - 3oz Copper Thickness

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCULP

Payment & Shipping Terms:

Minimum Order Quantity: 1square
Price: Negotiation
Packaging Details: wooden carton
Delivery Time: 5- 20days
Payment Terms: T/T, L/C
Supply Ability: 2000square per month
Contact Now
Detailed Product Description
Application:: High Flexibility,flexible Circuit Board Pcb,flexible Circuits Pcb Standard: IPC-A-610 E Class II-III
Board Thickness: 0.3mm-6mm Base Material:: FR-4,CEM-3,Taconic,Rogers,ALU,FR-1
Max Board Size: 1200mm*600mm Copper Thickne: 0.3oz-3oz
PCB Tolerance: ±5% Name: Laminated Copper Foil

FCCL Flexible Copper Clad Laminate for led display fpc circuit board pcb

Single Side / Double Sided Flexible Laminated Copper Foil 0.3oz - 3oz Copper Thickness



Products introduction

Flexible Printed circuit Board, FPC is processing substrate material, is made of flexible insulating film and metal foil.The flexible CCL, which is made of three different materials of copper foil, film and adhesive, is called three-ply flexible CCL ("3l-Fcl").Flexible CCL without adhesive is called two-ply flexible CCL ("FCCL").





FCCL Products Structure

Products Structure 2Layer 3Layer
Single Side ED or RA Cu ED or RA Cu
Adhesive
PI Film PI or PET Film
Double Side ED or RA Cu ED or RA Cu
PI Film Adhesive
ED or RA Cu PI or PET Film
ED or RA Cu
Covertly - Release Paper
Adhesive
PI or PET film
Bonding Sheet - Release Paper

Adhesive

Release film
Stiffener - Release Paper
Adhesive
PI or PET film
Adhesive
PI or PET film



Application .Electronic Products/Portable electronic products
  .PCB board,Circuit board,Printed Circuits Board
  .Aerospace equipment, navigation equipment,Aircraft instrumentation,Spacecraft.
  .Military guidance System
  .phone/mobile
  .Digital camera
  .Vehicle Satellite Orientation Device
  .LCD TV
  .Notebook computer
  .High density lines



Products Classification

Single Side / Double Sided Flexible Laminated Copper Foil 0.3oz - 3oz Copper Thickness



2-Layer FCCL D/S (Double side) Casting

Single Side / Double Sided Flexible Laminated Copper Foil 0.3oz - 3oz Copper Thickness

2-Layer FCCL D/S /Double side FCCL -Lamination type explanation

Single Side / Double Sided Flexible Laminated Copper Foil 0.3oz - 3oz Copper Thickness

2-Layer Double side FCCL Structure explanation

Single Side / Double Sided Flexible Laminated Copper Foil 0.3oz - 3oz Copper Thickness

2-Layer Double side FCCL Process flow chart

Single Side / Double Sided Flexible Laminated Copper Foil 0.3oz - 3oz Copper Thickness

Details Packing:  wooden box



P.S  Keep the dry environment,and is better use it in 30days.



FAQ:
Q1: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The common delivery time is 5-20working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: The MOQ is 2000square
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q6:can you provide sample

​Yes,we can

Q7:can you provide MTC of material ?

Yes,we can



OUR ADVANTAGE

1. Our company through TS16949: 2009 quality system certification, exports of processed products comply with European standards

2. There is no minimum order quantity restrictions, full support from proofing to batch.

3. Professional component sourcing team, centralized purchasing, you save procurement costs, labor costs, quality costs.

4. Fast Proofing: SMT samples 24 hours of delivery.

5. Our main customer groups: medical, industrial, security, communications, electricity and other high-end



Photos show

Single Side / Double Sided Flexible Laminated Copper Foil 0.3oz - 3oz Copper Thickness
