12um Double Matte Side Lithium Ion Battery Copper Foil 5 - 1380mm Width

China 12um Double Matte Side Lithium Ion Battery Copper Foil 5 - 1380mm Width supplier

Large Image :  12um Double Matte Side Lithium Ion Battery Copper Foil 5 - 1380mm Width

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: 20kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Elongation: ≥ 1.5%
Length Per Roll: 500 - 5000 Meter Stype: Double Shiny,double Light,double Glossy
Tensile Strength: 100-105 G/m2 Name: 12um Double Matte Side Lithium Ion Battery Copper Foil 5 - 1380mm Width



12um Double Matte Side Lithium Ion Battery Copper Foil 5 - 1380mm Width



Company Information



Our products have found their applications in CCL, PCB as well as Lithium-ion battery industries extensively, commanding more than 30% of domestic market share of ED copper foils used in Li-ion battery field.

Both our service and quality are leading the industry and serve as the benchmark among the renowned brands domestically.



Clean energy is more and more popular in the world,and it is support by goberment in many countries,copper foil is a main part in the battery manufacture. high quality copper foil will be a rising tendency.



Product Description

Lithium-ion battery copper foil have three types, doulbe shine/matte sides, single matte side,the single matte side is more popular, as the technology development, doulbe shine becomes more and more welcome.



More Detail

Type 12 um double matte side copper foil
Thickness Range 5 um ~12um
Width Range 100-1380 mm
Standard IPC-4562A,IPC-TM-650
Tensile Strength 100-105 g/m2
Performance The symmetrical structure of both sides
The metal density nearing the copper theoretical density
Very low surface profile, high elongation and tensile strength
Application Be used for the Li-ion battery cathode carrier and current collector.
XEV: hybrid-electric vehicle.(HEV)
Parallel hybrid electric vehicle(PHEV)
Electric vehicle(EV)
Li-ion battery cathode carrier and current collector



Features:

1. Eco-friendly products and processes.

2. Stable properties suitable for high capacity rechargeable battery



MTC of electrolytic ED copper foil lithium battery

Classification Unit Requirement   Test Method
Foil Designation /               IPC-4562A
Nominal thickness / 6um 7um 8um 9/10um 12um 15um 20um IPC-4562A
Area Weight g/㎡ 54±1 63±1.25 72±1.5 89±1.8 107±2.2 133±2.8 178±3.6

IPC-TM-650

2.2.12.2

Purity ≥99.9

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) um 0.1-0.4

IPC-TM-650

2.3.17

Matte side(Rz) um 0.8-2.0
Tensile Strength R.T.(23℃) Mpa >280

IPC-TM-650

2.3.18

H.T.(180℃) >200
Elongation R.T.(23℃) >5

IPC-TM-650

2.3.18

H.T.(180℃) >3
Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 90   /
H.T.(160℃) Minutes 15   /

6.Max Width,1380(±1)mm,May according to the customer request tailor.



FAQ:
Q1: What's your Delivery Lead time ?


A: The specific delivery time depends on the items and the quantity of your order.The common : 5-15days


Q2: What's your minimum order quantity?


A: The MOQ is 100 kg.



Q3: What's your guarantee?



A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.



​Q4: can you provide Mill Test Certificate

​A:Yes.we can

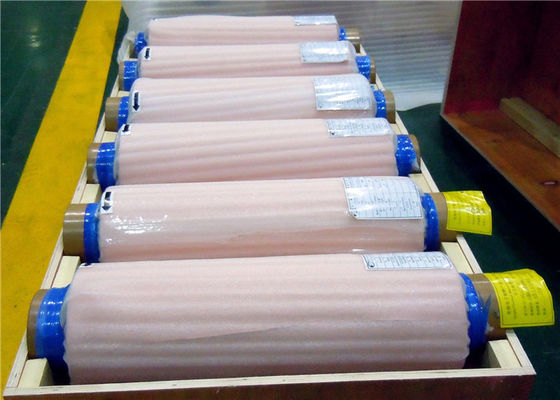

Lithium Ion Battery Copper Foil Photos

12um Double Matte Side Lithium Ion Battery Copper Foil 5 - 1380mm Width
