Single Side Gray HTE Copper Foil FR4 High Peel Strength SGS Approval

China Single Side Gray HTE Copper Foil FR4 High Peel Strength SGS Approval supplier

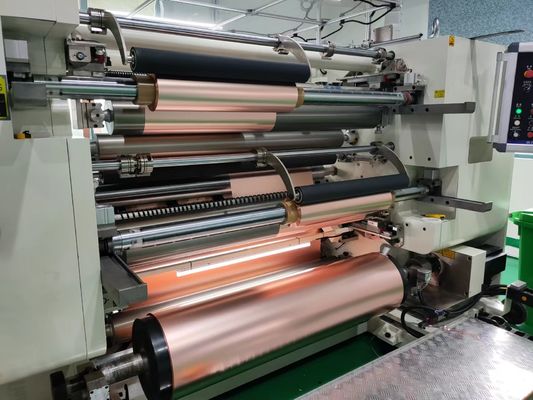

Large Image :  Single Side Gray HTE Copper Foil FR4 High Peel Strength SGS Approval

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Tensile Strength: ≥ 160 MPa Peel Strength: ≥ 1 N/mm
Foil Profile: RA≤0.15μm,Rz≤1.7μm Length Per Roll: 500 - 5000 Meter
Inter Diameter: 76 Mm,152 Mm, 3 Inch,6 Inch

FR4 High peel strength 1 oz gray ED HTE copper foil for PCB



Features:



No cooper powder movement and the clear figures.

Environment friendly production.



Please rere to Specification as follow:



. Single side side treatment low profile foil in back/red.

. Thickness: 0.035 mm,1 oz,35 mic.

. High elongation.

. High temperature resistance.



Application:



- High frequency microwave circuit.

- High speed circuit.



Compare between CA copper foil and ED copper foil



1. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.



2. Surface treatment width:rolled copper foil be limited by Surface treatment widest effective width of 520mm.



HTE ED copper foil (high elongation copper foil at high temperature)

Thickness um 9 12 18 25 35 70

IPC 4562

4.6.3.1



Area weight g/m² 80±1 107±3 153± 215±5 285±5 585±8

IPC 4562

4.6.3.2

Roughness (RA) μm 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4

IPC 4562

4.6.9

(RZ) μm <6.0 <6.5 <8.0 <9.0 ≤10.0 <15



Copper≧

% 99.8

IPC 4562

4.6.3.1



Tensile Strength state normal Mpa >300 >300 >300 >300 >300 >280

IPC 4562

4.6.4

state temper (180℃) Mpa >15.0 >18.0 >18.0 >18.0 >18.0 >18.0
ElongationI state normal % >3.0 >3.0 >5.0 >6.0 >10.0 >10.0

IPC 4562

3.5.3

state temper (180℃) % >2.0 >2.5 >2.5 >3.0 >5.0 >5.0
Peel strength N/mm >1.0 >1.05 >1.35 >1.70 >1.8 >2.0

IPC 4562

4.6.7

High temperature oxidation resistance(200℃,

40min)

No color change Standard
Solderability Good Standard
Solderability Good

IPC 4562

4.6.12

3.Standard Width,1295(±1)mm,May according to the customer request tailor.

We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.



FAQ:

Q7. Length per roll?

500-5000meter



Q8. what is the Internal diameter?

76/152/ custom



Q9. Are the package suitable For export ?

Yes , it is suitable for export.
