HD Electrolytic Pure Copper Foil For Polyimide Board RoHS / SGS Approval

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

HD Electrolytic Pure Copper Foil For Polyimide Board RoHS / SGS Approval

China HD Electrolytic Pure Copper Foil For Polyimide Board RoHS / SGS Approval supplier

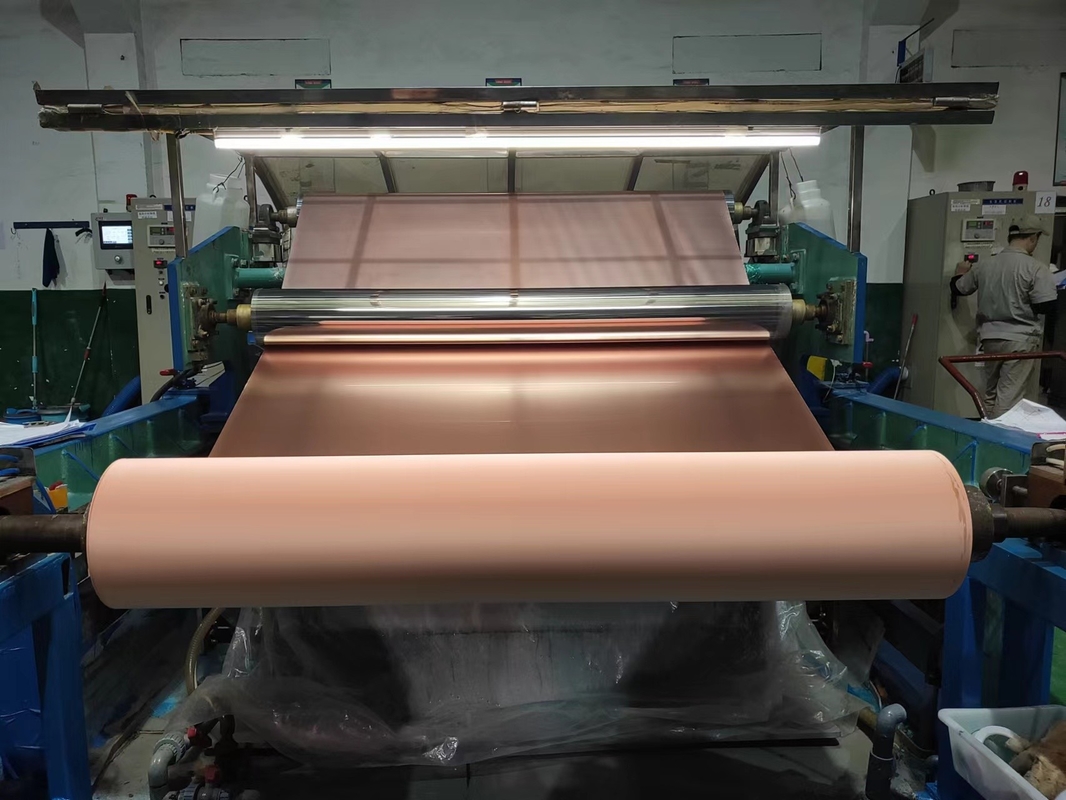

Large Image :  HD Electrolytic Pure Copper Foil For Polyimide Board RoHS / SGS Approval

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Elongation: ≥ 1.5%
Tensile Strength: ≥ 160 MPa Peel Strength: ≥ 1 N/mm
Application:: Epoxy Board Length Per Roll: 500 - 5000 Meter
Inter Diameter: 76 Mm,152 Mm, 3 Inch,6 Inch

25um HD electrolytic ED copper foil for Polyimide board



Overview:

Rang of Thickness: 25micron

Range of Width: 1380 mm

Range of Length: 500-5000 M

Available ID: 76 mm,152 mm

Purity:99.8%



Features of high ductility ED copper foil:

1. Good etch ability

2. Excellent adhesion to etching resist



Classify :

The ED copper foils for PCB can be divided into below parts:

(STD-E)- standard electrodeposited copper foil

(HD-E)-high ductility electrodeposited copper foil

(HTE-E)-high temperature elongation electrodeposited copper foil

(LP-E)-low profile electrodeposited copper foil

(VLP-E)-very low profile electrodeposited copper foil



difference between CA copper foil and ED copper foil



1. Process: rolled copper foil (Rolling process),ED copper foil (Electrodeposition process)

2. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.

3. Surface treatment width:rolled copper foil be limited by Surface treatment widest effective width of 520mm.



Package:wooden box





FAQ:



Q1: What's your guarantee?



A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.

Q2: What's your delivery time ?


A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.


Q3: What's your minimum order quantity?


A: MOQ is 150 kg.







Typical properties of high ductility copper foil



Classification



Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ

1

OZ

2

OZ

3

OZ

IPC-4562A
Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength

R.T.(23℃)



Mpa ≥150 ≥150 ≥235 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥5 ≥5 ≥10 ≥10 ≥15 ≥15

IPC-TM-650

2.3.18

Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162

IPC-TM-650

2.5.14

Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1

IPC-TM-650

2.4.8

Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 /
H.T.(200℃) Minutes 60 /
