0.015mm Rolled Copper Foil For Parallel Hybrid Electric Vehicle Battery

China 0.015mm Rolled Copper Foil For Parallel Hybrid Electric Vehicle Battery supplier

Large Image :  0.015mm Rolled Copper Foil For Parallel Hybrid Electric Vehicle Battery

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: RACULP-S-B/G/R

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: Negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Color: Red Tensile Strength: ≥ 160 MPa
Foil Profile: RA≤0.15μm,Rz≤1.7μm Application:: Lithium-ion Battery Of Parallel Hybrid Electric Vehicle(PHEV)
Length Per Roll: 500 - 5000 Meter Inter Diameter: 76 Mm,152 Mm, 3 Inch,6 Inch

0.015mm (15um) Roll copper foil For lithium-ion battery of Parallel hybrid electric vehicle(PHEV)

Quickly details

Thickness: 0.015mm,15um
Width: ≤620 mm
Length: ≤5000 M
Coil inter diameter : 76 mm,3 inch
Alloy: E-Cu58

Features:

. Superior rupture endurance,Double shiny side.
. Eco-friendly products and processes.

Application:

. XEV: hybrid-electric vehicle.(HEV)
. Parallel hybrid electric vehicle(PHEV)
. Electric vehicle(EV)

Compare between CA copper foil and ED copper foil

. Density: RA cu foil with higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal.

. Surface treatment width: Ra CU- foil be limited by Surface treatment widest effective width of 520mm.

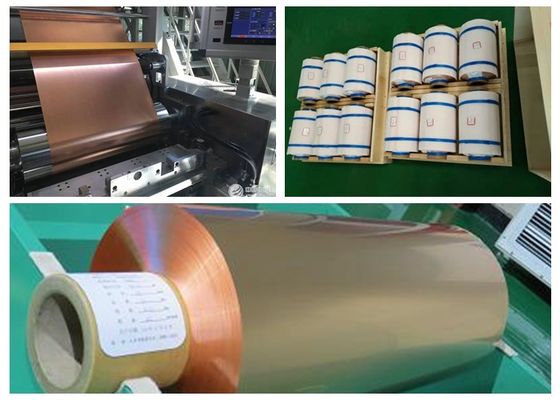

wooden carton Package picture

0.015mm Rolled Copper Foil For Parallel Hybrid Electric Vehicle Battery


FAQ:

Q1: Common Leading time ?
A:  Common 35 working days. urgent is 5 days.
Q2: What's your minimum order quantity?
A: The MOQ is 200kg.

Q3. May i have test report before delivery?
A: Yes, you will have ,we will provide TDS.

Q6. what is your standard width?

A: Common width 620mm,we accept customization.



Lithium-ion batteries copper foil TDS


Thickness

9/10/12/15/20um

Width≤620mm
ItemUnitParameter
ThicknessMM0.0090.010.0120.0150.02
GradeC1100C1100C1100C1100C1100
Copper content%≥99.95≥99.95≥99.95≥99.95≥99.95
Area Weightg/㎡80±395±3107±4134±4178±6
Double-sided(Ra)Um≤0.17≤0.17≤0.17≤0.17≤0.17
State NormalMpa≥380≥400≥400≥400≥400
State Normal%≥1.2≥1.4≥1.5≥1.5≥1.6
Conductivity20℃ IACS≥95%≥95%≥95%≥95%≥95%
High temperature oxidation resistance(180℃ 1hour)QualifiedQualifiedQualifiedQualifiedQualified


Remark: Standard Width,620(±1)mm, according to the customer request.
