9um RA Double Shiny Rolled Copper Foil Lithium - Ion Batteries Suitable

9um RA Double Shiny Rolled Copper Foil Lithium - Ion Batteries Suitable

  • 9um RA Double Shiny Rolled Copper Foil Lithium - Ion Batteries Suitable
  • 9um RA Double Shiny Rolled Copper Foil Lithium - Ion Batteries Suitable
9um RA Double Shiny Rolled Copper Foil Lithium - Ion Batteries Suitable
Product Details:
Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: RACULP-S-B/G/R
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Pinholes: None
Anti Oxidation: 180 Degree 60 Minutes Thickness: 0.009mm ,9um)
Color: Red
High Light:

copper foil roll

,

copper sheet roll

0.009mm (9um) RA double shiny Roll copper foil For lithium-ion batteries of power energy


Quickly Details

  • Double side shiny
  • Thickness: 0.009mm
  • Alloy: T2
  • ID: 76 mm,152 mm


Features:

  1. Double shiny side ,superior rupture endurance.
  2. Stable properties suitable for high capacity rechargeable battery .


Application:

  1. Lib: notebook PC, mobile phone.

  2. Lip: mobile phone


Compare between CA copper foil and ED copper foil


  1. Process: rolled copper foil (Rolling process),ED copper foil (Electrodeposition process)

  2. Strength toughness: rolled copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.

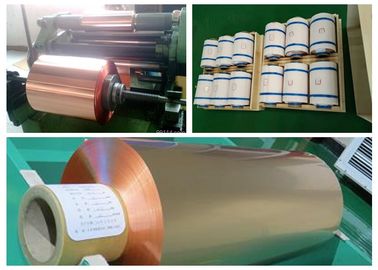

Package:wooden carton

9um RA Double Shiny Rolled Copper Foil Lithium - Ion Batteries Suitable 0

FAQ:
Q1: What's your guarantee?
A1: All our products have 6 months guarantee after received goods, if any quality problem can contact us.



Q2: What's your delivery time ?
A2: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.



Q3: What's your minimum order quantity?
A3: MOQ: 50KG


Typical properties of RA rolled copper foil lithium-ion batteries



Thickness 0.007mm 0.01mm 0.012mm Width ≤600mm
Item Unit Parameter
Thickness MM 0.009 0.01 0.012 0.015 0.02
Grade C1100 C1100 C1100 C1100 C1100
Copper content % ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 80±3 95±3 107±4 134±4 178±6
Roughness Double-sided(Ra) Um ≤0.17 ≤0.17 ≤0.17 ≤0.17 ≤0.17
Tensile Strength(MP) State Normal Mpa ≥380 ≥400 ≥400 ≥400 ≥400
Elongation(%) State Normal % ≥1.2 ≥1.4 ≥1.5 ≥1.5 ≥1.6
Electrical performance Conductivity 20℃ IACS ≥95% ≥95% ≥95% ≥95% ≥95%
High temperature oxidation resistance(180℃ 1hour) Qualified Qualified Qualified Qualified Qualified


Remark:Standard Width,520(±1)mm,May according to the customer request.
