Double Shiny Rolled Copper Sheet , 500 - 5000 Meter Length Copper Roll

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

Double Shiny Rolled Copper Sheet , 500 - 5000 Meter Length Copper Roll

China Double Shiny Rolled Copper Sheet , 500 - 5000 Meter Length Copper Roll supplier

Large Image :  Double Shiny Rolled Copper Sheet , 500 - 5000 Meter Length Copper Roll

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: RACULP-S-B/G/R

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Pinholes: None
Anti Oxidation: 180 Degree 60 Minutes, 180 Days 23 Degree Thickness: 1/2 Oz,3/4 Oz,1 Oz,2 Oz,
Color: Red Or Black Elongation: ≥ 1.5%
Tensile Strength: ≥ 160 MPa Peel Strength: ≥ 1 N/mm
Foil Profile: RA≤0.15μm,Rz≤1.7μm Application:: FCCL,FPC
Length Per Roll: 500 - 5000 Meter Inter Diameter: 76 Mm,152 Mm, 3 Inch,6 Inch

GOOD RA double shiny Roll copper foil For lithium-ion batteries of power energy



Quickly details



single side side treatment low profile foil in back/red.

Thickness: 0.012-0.070 mm

Width: 5-520 mm

Length: 500-5000 M

ID: 76 mm,152 mm

Alloy: T2,C11000,C1100,C101,E-Cu58

Temper: H



Features:

1. double shiny side ,superior rupture endurance.

2. Stable properties suitable for high capacity rechargeable battery .

3. Eco-friendly products and processes.

4. Excellent uniformity and infiltration.

Application:

1. Lib: notebook PC, mobile phone.

2. Lip: mobile phone

3. XEV: hybrid-electric vehicle.(HEV)

4. Parallel hybrid electric vehicle(PHEV)

5. Electric vehicle(EV)



Compare between CA copper foil and ED copper foil



1. Process: rolled copper foil (Rolling process),ED copper foil (Electrodeposition process)

2. Strength toughness: rolled copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.

3. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm

4. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.

5. Surface treatment width:rolled copper foil be limited by Surface treatment widest effective width of 520mm.



Package:wooden carton

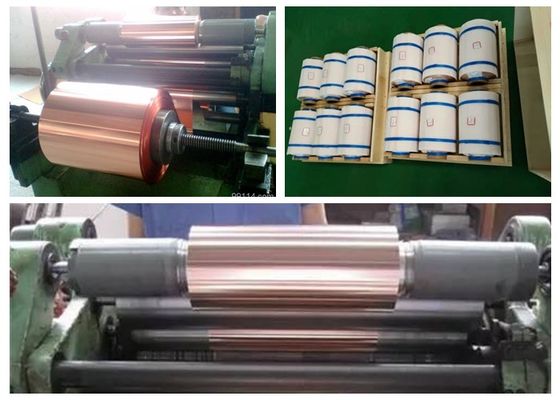

Double Shiny Rolled Copper Sheet , 500 - 5000 Meter Length Copper Roll





FAQ:



Q1: What's your guarantee?



A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.

Q2: What's your delivery time ?


A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.


Q3: What's your minimum order quantity?


A: The MOQ is 150 kg.



Q4: Can you supply the sample?



A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.



Q5. Do you test all your goods before delivery?


A: Yes, we have 100% test before delivery.



Q6. what is your standard width?



A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.







Typical properties of RA rolled copper foil lithium-ion batteries



Thickness

9/10/12/15/20um

Width ≤620mm
Item Unit Parameter
Thickness MM 0.009 0.01 0.012 0.015 0.02
Grade C1100 C1100 C1100 C1100 C1100
Copper content % ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 80±3 95±3 107±4 134±4 178±6
Double-sided(Ra) Um ≤0.17 ≤0.17 ≤0.17 ≤0.17 ≤0.17
State Normal Mpa ≥380 ≥400 ≥400 ≥400 ≥400
State Normal % ≥1.2 ≥1.4 ≥1.5 ≥1.5 ≥1.6
Conductivity 20℃ IACS ≥95% ≥95% ≥95% ≥95% ≥95%
High temperature oxidation resistance(180℃ 1hour) Qualified Qualified Qualified Qualified Qualified



Remark:Standard Width,520(±1)mm,May according to the customer request tailor.
