Camera Electric Radiator Rolled Copper Foil 18um / 0.5 OZ Thickness

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

Camera Electric Radiator Rolled Copper Foil 18um / 0.5 OZ Thickness

China Camera Electric Radiator Rolled Copper Foil 18um / 0.5 OZ Thickness supplier

Large Image :  Camera Electric Radiator Rolled Copper Foil 18um / 0.5 OZ Thickness

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: RACULP-S-B/G/R

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: Negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Thickness: 18um,1/2oz,0.018mm
Roughness: RA≤1.0μm Application:: Camera Electric Radiator

RA Roll 0.018mm (18um,1/2oz) copper foil For Camera Electric Radiator



Quickly details



Coil ID: 40mm,76 mm,152 mm

Cu foil Alloy: C101,E-Cu58

Temper: O (soft)

Area Weight: 151±5 g/㎡

Elongation(%):  ≥1.3



Features:



1.Eco-friendly products and processes.

2.Excellent uniformity and infiltration.





Application:



Camera, Electric Radiator



Package:wooden carton

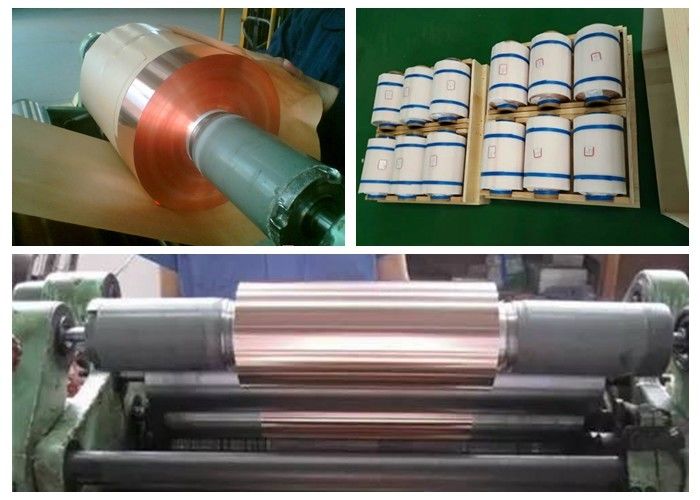

Camera Electric Radiator Rolled Copper Foil 18um / 0.5 OZ Thickness





FAQ:



Q1: What's your guarantee?



A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.


Q3: What's your minimum order quantity?


A: The MOQ is 150 kg.



Q4: Can you supply the sample?



A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.



Q6. what is your standard width?



A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.





Compare between CA copper foil and ED copper foil



. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm

. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.

. Surface treatment width:rolled copper foil be limited by Surface treatment widest effective width of 520mm.





TDS of Cu foil of 10/18/35um

Thickness 0.01mm 0.018mm 0.035mm Width ≤600mm
Item Unit Parameter
Thickness MM 0.01 0.018 0.035
Grade C1100 C1100 C1100
Copper content % ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 88±4 151±5 301±10
Roughness Ra Um ≤0.15 ≤0.15 ≤0.15
Rz Um ≤1.0 ≤1.0 ≤1.0
Tensile Strength(MP) Processing State Mpa ≥380 ≥400 ≥400
state temper (180℃) Mpa ≥160 ≥160 ≥160
Elongation(%) Processing State % ≥1.3 ≥1.4 ≥1.4
state temper (180℃) % ≥8 ≥10 ≥10
Electrical Performance



Conductivity

20℃ IACS ≥98% ≥98% ≥98%
High temperature oxidation resistance(180℃ 1hour)

Qualified



Qualified



Qualified





Remark:Thickness can be customized
