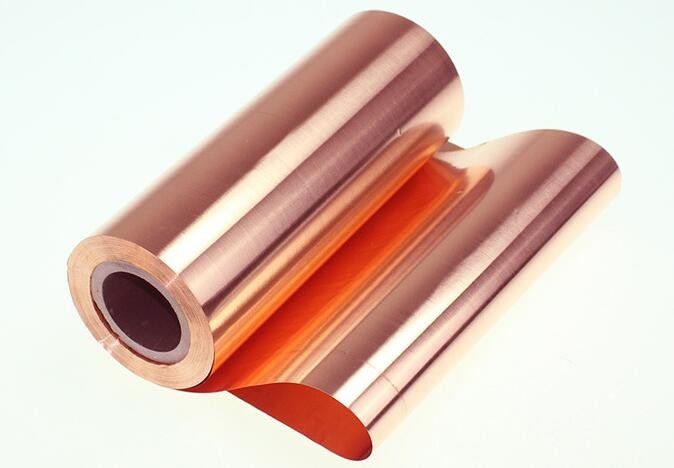

Thin Copper Sheet Metal Roll For Shielding LED Light Strip None Pinholes

China Thin Copper Sheet Metal Roll For Shielding LED Light Strip None Pinholes supplier

Large Image :  Thin Copper Sheet Metal Roll For Shielding LED Light Strip None Pinholes

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: RACULP-S-B/G/R

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: Negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Pinholes: None
Storage Condition: T≤25℃,RH≤60%,180 Days Thickness: 10um,0.01mm

Thickness 0.01mm (10um) RA Roll copper foil For shielding LED Light Strip



Features:



1. High strength

2. Physical performance Excellent uniformity.



Quickly details



Color uniformity and  Double shiny

Cu-foli Thickness:0.01mm

Cu-foli Width: 5-620 mm

Cu-foli Length: 5000 M



Application:



Shielding ,LED Light Strip,



Compare between CA copper foil and ED copper foil



Process: rolled copper foil (Rolling process),ED copper foil (Electrodeposition process)



Strength toughness: rolled copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.





FAQ:



Q4: if provide sample?



A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.



Q5. if test goods before delivery?


A: Yes, we have.



Q6. what is your standard width?



A: 620mm,we accept customization



All thickness Technical data sheet



Thickness 0.01mm 0.018mm 0.035mm Width ≤600mm
Item Unit Parameter
Thickness MM 0.01 0.018 0.035
Grade C1100 C1100 C1100
Copper content % ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 88±4 151±5 301±10
Roughness Ra Um ≤0.15 ≤0.15 ≤0.15
Rz Um ≤1.0 ≤1.0 ≤1.0
Tensile Strength(MP) Processing State Mpa ≥380 ≥400 ≥400
state temper (180℃) Mpa ≥160 ≥160 ≥160
Elongation(%) Processing State % ≥1.3 ≥1.4 ≥1.4
state temper (180℃) % ≥8 ≥10 ≥10
Electrical Performance



Conductivity

20℃ IACS ≥98% ≥98% ≥98%
High temperature oxidation resistance(180℃ 1hour)

Qualified



Qualified



Qualified





Remark: Can be customized
