FPC / FCCL RA Copper Foil Sheet Roll , SGS 99.95% Purity Pure Copper Foil

China FPC / FCCL RA Copper Foil Sheet Roll , SGS 99.95% Purity Pure Copper Foil supplier

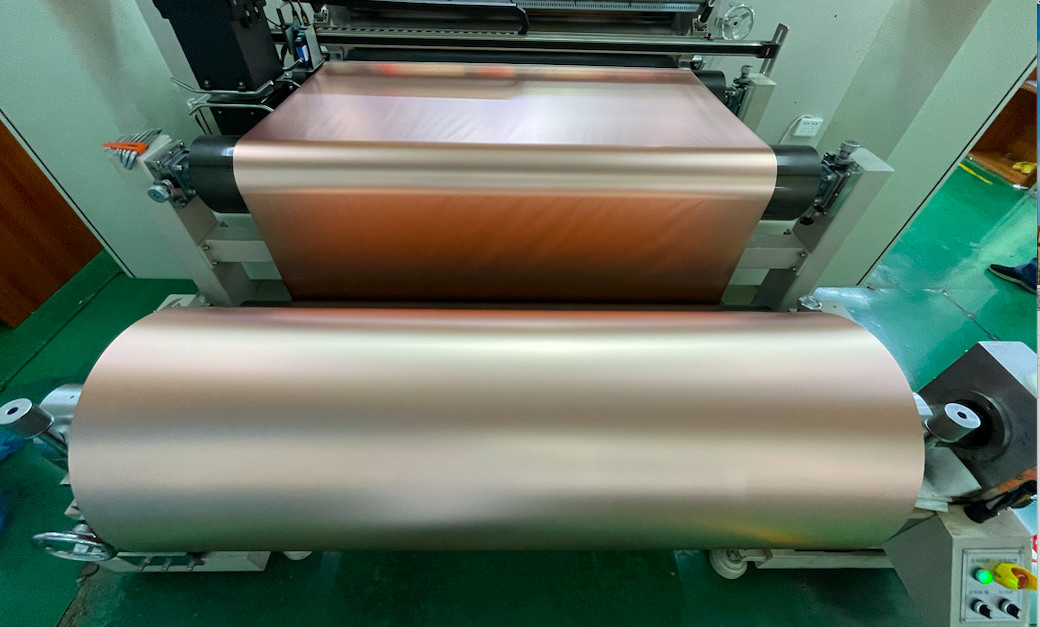

Large Image :  FPC / FCCL RA Copper Foil Sheet Roll , SGS 99.95% Purity Pure Copper Foil

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: RACULP-S-B/G/R

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Pinholes: None
Anti Oxidation: 180 Degree 60 Minutes, 180 Days 23 Degree Thickness: 1/2 Oz,3/4 Oz,1 Oz,2 Oz,
Color: Red Or Black Elongation: ≥ 1.5%
Tensile Strength: ≥ 160 MPa Peel Strength: ≥ 1 N/mm
Foil Profile: RA≤0.15μm,Rz≤1.7μm Application:: FCCL,FPC
Length Per Roll: 500 - 5000 Meter Inter Diameter: 76 Mm,152 Mm, 3 Inch,6 Inch

LP-S-B/G/R RA Rolled Copper foil For FCCL FPC Phenolic board Epoxy board flexible circuit board



Quickly details



single side side treatment low profile foil in back/red.

Thickness: 0.012-0.070 mm

Width: 5-520 mm

Length: 500-5000 M

ID: 76 mm,152 mm

Alloy: T2,C11000,C1100,C101,E-Cu58

Temper: H



Compare between CA copper foil and ED copper foil



1. Process: rolled copper foil (Rolling process),ED copper foil (Electrodeposition process)

2. Strength toughness: rolled copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.

3. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm

4. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.

5. Surface treatment width:rolled copper foil be limited by Surface treatment widest effective width of 520mm.



Features:



1. the treated foil in gray or red

2. High profile with properties of LP-S-B/G/R suitable for FCCL

3. Grain structure of copper foil leads to high flexibility

4. Excellent etching performance

5. low profile enables to make fine circuit pattern



Application:

1. Casting and lamination type FCCL

2. Super fine pattern FPC

3. Chip on flex (COF) for LED

FCCL

COVERLAY

BONDING FILM

STIFFENER

Semi-flex CCL

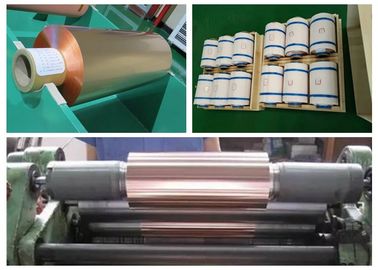

Package:wooden carton



FPC / FCCL RA Copper Foil Sheet Roll , SGS 99.95% Purity Pure Copper Foil





FAQ:



Q1: What's your guarantee?



A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.

Q2: What's your delivery time ?


A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.


Q3: What's your minimum order quantity?


A: The MOQ is 150 kg.



Q4: Can you supply the sample?



A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.



Q5. Do you test all your goods before delivery?


A: Yes, we have 100% test before delivery.



Q6. what is your standard width?



A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.






Thickness 0.10/0.012/0.018/0.025/0.035mm Width ≤520mm
Item Unit



Parameter


Thickness MM 0.010 0.012 0.018 0.025 0.035
Grade C1100 C1100 C1100 C1100 C1100



Copper content

% ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/m2 89±3 107±4 160±5 222±7 305±10
Roughness (RA) Um ≤0.15 ≤0.15 ≤0.15 ≤0.15 ≤0.15
(RZ) Um ≤1.7 ≤1.7 ≤1.7 ≤1.7 ≤1.7



Tensile Strength(MP)

State normal Mpa ≥360 ≥380 ≥400 ≥400 ≥400
State temper (180℃) Mpa ≥160 ≥160 ≥160 ≥160 ≥160



Elongation(%)

State normal % ≥1.0 ≥1.2 ≥1.4 ≥1.4 ≥1.4
state temper l(180℃) % ≥7 ≥8 ≥10 ≥10 ≥10
MIT State normal Time ≥2400 ≥2400 ≥2400 ≥2400 ≥2400
state temper (180℃) Time ≥2400 ≥2400 ≥2400 ≥2400 ≥2400
Peel strength N/mm ≥0.8 ≥1.0 ≥1.3 ≥1.35 ≥1.4
High temperature oxidation resistance(180℃ 1hour)

Qualified



Qualified



Qualified



Qualified



Qualified





Remark:Standard Width,520(±1)mm,May according to the customer request tailor.
