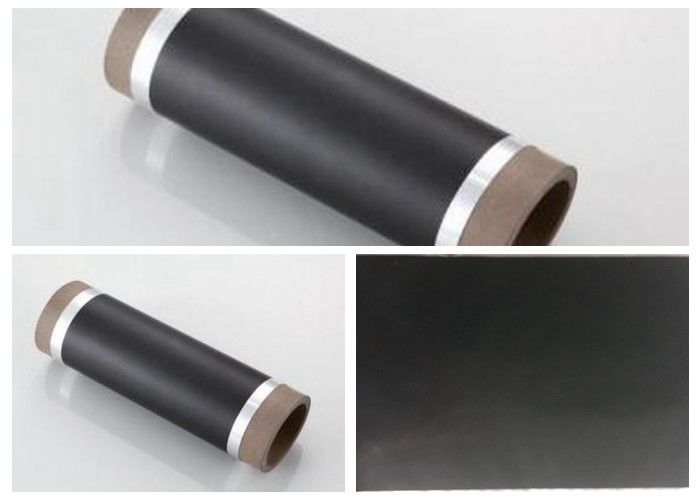

Black Conductive Aluminum Capacitor Foil Carbon Coated 99.9% Purity

China Black Conductive Aluminum Capacitor Foil Carbon Coated 99.9% Purity supplier

Large Image :  Black Conductive Aluminum Capacitor Foil Carbon Coated 99.9% Purity

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: NAMOALCAW1

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: usd 22-30 kg
Packaging Details: wooden carton
Delivery Time: 20-30 days
Supply Ability: 300 Ton per month
Contact Now
Detailed Product Description
Purity: 99.9% Pinholes: None
Thickness: 12-100μm Conductivity: 2 S/CM
Corrosion Resistance: No Exfoliation Peel Strength: ≥ 2 N/mm
Application: XEV: Hybrid-electric Vehicle.(HEV) ,Parallel Hybrid Electric Vehicle(PHEV) ,Electric Vehicle(EV),Lithium-ion Batteries Supercapacitor Coated: Carbon-coated
Product: Aluminum Foil

black conductive Modified current collector carbon-coated aluminum Foil for Lithium-ion batteries Super capacitor




CAW2 is one of the best price-ratio “CA” series product, This product shows comparable performance to foreign products, which breaks through the monopolization of conventional carbon-coated Al foil in international market. Conductive carbon is used as main coating material, and special resin is selected as binder. The coating slurry is casted onto both sides of Al foil using an advanced coating machine ,of which the coating velocity can be 150m per minute .



Application:



supercapacitor,Lithium-ion supercapacitor



Advantages



1. Improve the surface tension, and increase the adhesion between the aluminium foil and the active material.

2. Decrease the using amount of binder for the electrode ,enhance energy density of the battery ,and lower the cost of the electrode production

3. Mitigate exothermic reactions and enhance the battery safety

4. Improve the production stability and reproducibility ,and raise the pass rate of the cell

5. Increase the consistency and cycling life of the cell,and lower the cost of the production.



Black Conductive Aluminum Capacitor Foil Carbon Coated 99.9% Purity



Physical and chemical properties of CAW2 product.

Black Conductive Aluminum Capacitor Foil Carbon Coated 99.9% Purity

important cautions:





1. Avoid any collisions against hard materials. Handle the product gently.

2. This product is developed by our company for the application in batteries , if application in other fields, please discuss with us for it .



Packaging marketing:



The product type,quantity ,production date and place etc, are indicated on the package.



Black Conductive Aluminum Capacitor Foil Carbon Coated 99.9% Purity
