Blackened Rolled Copper foil With black matte side70um 35um used in Flexible Copper Clad Laminate

Blackened Rolled Copper foil With black matte side70um 35um used in Flexible Copper Clad Laminate

Blackened Rolled Copper foil With black matte side70um 35um used in Flexible Copper Clad Laminate
Blackened Rolled Copper foil With black matte side70um 35um used in Flexible Copper Clad Laminate

Large Image :  Blackened Rolled Copper foil With black matte side70um 35um used in Flexible Copper Clad Laminate Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: JIMA
Certification: YS/T 1039-2015
Model Number: THB112

Payment & Shipping Terms:

Minimum Order Quantity: Negotiations
Price: Negotiations
Packaging Details: wooden box
Delivery Time: 10~30days
Payment Terms: L/C, T/T
Supply Ability: 120000 m2/month
Detailed Product Description
Name: Blackened Rolled Copper Foil-THB111Y Width: 520mm 630mm
Package: Standard Wooden Box Features1: High Flexibility
Features2: Low Roughness Aoplication: Manufacturing Flexible PCB
High Light:

copper foil roll

,

copper foil sheet



Blackened Rolled Copper foil With black matte side70um 35um used in Flexible Copper Clad Laminate

Blackened Rolled Copper foil-THB111Y

The company has imported a complete set of international advanced level production equipments and experiment instrument for electronic rolled copper foil.Black rolled copper foil with good surface treatment,Very suitable for FPC applications.



Application Fields:

>  Informatization and Intelligentization:High-end Product Field such as Aerospace,Medical Apparatus and Instruments,Robots, Computers and >. Automotive Electronics,etc.

> Flexible PCB

Apply to flexibility LED




Product Features:
1.For FPC
2 Low Roughness,High Flexibility
3.Excellent Etching Performance

4. Treated RA copper foil with red matte side/ with black matte side

Data:

Item Unit Requirement Test Method
18um 9um 22um 12um 50um 35um 70um
Basic Weight g/㎡ 144.9-158.6 80+/-2 196+/-4 107+/-3 445+/-5 289.8-317.2 579.5-634.4 GB/T29847-2013
Width Accuracy mm ±1.0 GB/T 26303
Purity % ≥99.97 GB/T 5121
Surface
Roughness
S Side(Ra) um ≤0.30 max.0.2 max.0.2 max.0.2 max.0.2 ≤0.30 ≤0.30 GB/T29847-2013
M Side(RZ) um ≤2.0 0.8-1.5 0.8-1.5 0.8-1.5 0.8-1.5 ≤2.0 ≤2.0
Tensile
Strength
Rm Normal N/m㎡ ≧370         ≧370 ≧370 GB/T29847-2013
Rm 180℃×30min N/m㎡ 170-190 160-180 180-210 160-180 200-220 ≧170 ≧170
Elongation A50 Normal % ≧1.0         ≧1.0 ≧1.0 GB/T29847-2013
R50 180℃×30min % ≧8 ≧7 ≧9 ≧8 ≧13 ≧11 ≧12
Peel Strength N/mm ≧1.0 ≧0.8 ≧1.0 ≧0.8 ≧1.4 ≧1.2 ≧2.0 GB/T29847-2013
Pinhole & Soakge Point Pcs Non GB/T29847-2013
Oxidation
Resistance
Room
Temperature
day 180 /
200℃ min 60min. GB/T29847-2013

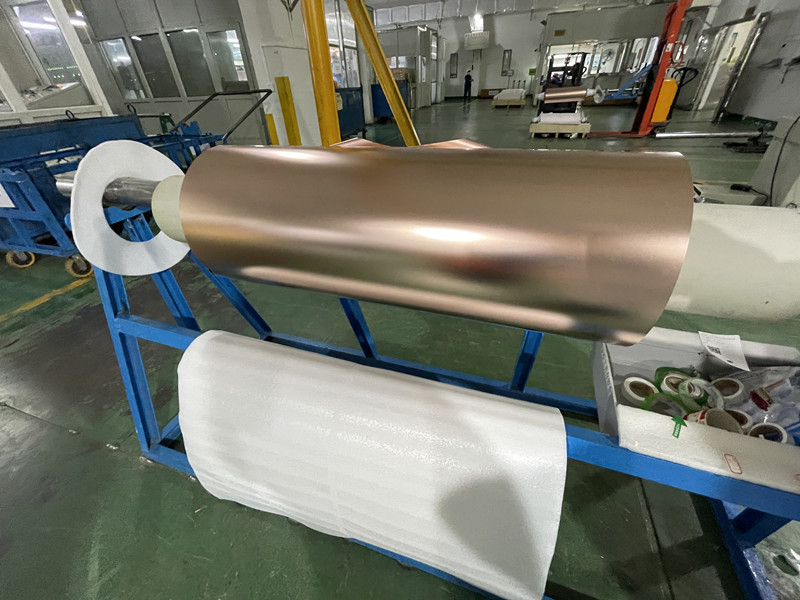

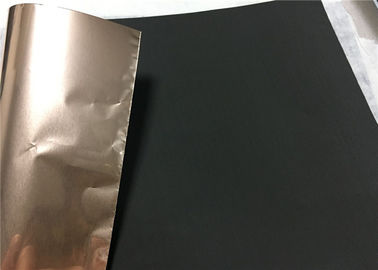

Product pictures

Blackened Rolled Copper foil With black matte side70um 35um used in Flexible Copper Clad Laminate 0
My company produces the FPC materials, Need to contact us,
look forward to serving you.
