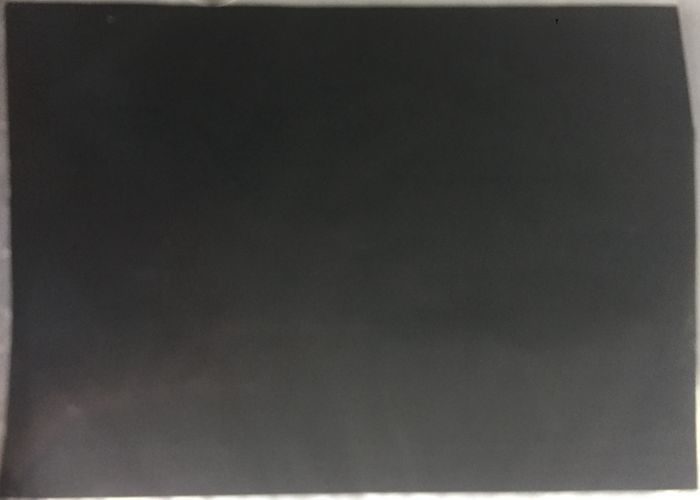

Carbon Coated Black Aluminum Foil , Double Sided Battery Aluminum Foil

China Carbon Coated Black Aluminum Foil , Double Sided Battery Aluminum Foil supplier

Large Image :  Carbon Coated Black Aluminum Foil , Double Sided Battery Aluminum Foil

Product Details:

Place of Origin: CHINA
Brand Name: JIMA
Model Number: CWA2

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: usd 26 per kg
Packaging Details: wooden box
Delivery Time: 20-30 days
Supply Ability: 100 ton per month
Contact Now
Detailed Product Description
Basis Materials Thickness: 0.012-0.040 Mm Roll Width: 0.1-1.2m
Purity: 99.9% Coating Density: 1.0 -2.5g/m2

Double sided carbon coated aluminum foil for Lithium-ion batteries cathode electrode.



Product Type:CAW2.



CAW2 is one of the highest-quality “CA” series product, Due to high conductivity and small size of conventional carbon-coated Al foil ,the obtained functional coating is very thin and highly conductive. The thickness of the functional coating is APPROX.400nm,resulting in improvement of both energy density and power density .we have independent intellectual property for this technology.



Quickly details.



Coated thickness:min 500nm,A: 4~6um B: 2~3um.

substrate Materials: Al foil.

Roll internal diameter: 3inch and 6 inch.

Fineness:> 99.9%.

Bulk Density:1.0 -2.5g/m2.



Features:



1 Improve the surface tension.
2 Enhance energy density of the battery ,and lower the cost of the electrode production
3 Reduce internal resistance of the cell.
4 Improve the specific capacity of the electrode material
5 Mitigate exothermic reactions
6 Raise the pass rate of the cell
7 Increase the consistency of the cell





Application:



. 3C (LCO.NCM):Lithium-ion batteries for 3C productions.

. Lithium-ion batteries cathode electrode.



Physical and chemical properties (MTC of CAW2 ).



Planar density
(Both side)
1.0g/m2
1.0±0.2mg/cm2
1.5g/m2
1.5±0.3mg/cm2
2.0g/m2
2.0±0.3mg/cm2
2.5g/m2
2.5±0.3mg/cm2
Covering rate min.80% min.90% Min.100% min.100
Conductivity ~30S/cm ~30S/cm ~30S/cm ~30S/cm
Peeling Strength 2.0N 2.0 N 2.5N 2.5N
Corrosion resistance No exfoliation No exfoliation No exfoliation No exfoliation



Important Matters:



b.>The coating layer is highly Hydrophilic, handle it under personal protection.

F.> This product is developed by our company for the application in batteries , if application in other fields, please discuss with us for it .



Usage and storage note:



Carbon Coated Black Aluminum Foil , Double Sided Battery Aluminum Foil

Package:wooden carton.



Carbon Coated Black Aluminum Foil , Double Sided Battery Aluminum Foil





FAQ:



Q1. what is your standard width?



A: 1000 mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.





Q2. Can you provide Certificate of analysis ?

Yes , we can.



Q3. Does the coated foil Floating in box?

Yes, it does
