35um Copper Sheet Roll For High Frequency Microwave Circuit IPC 4562 Standard

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

35um Copper Sheet Roll For High Frequency Microwave Circuit IPC 4562 Standard

China 35um Copper Sheet Roll For High Frequency Microwave Circuit IPC 4562 Standard supplier

Large Image :  35um Copper Sheet Roll For High Frequency Microwave Circuit IPC 4562 Standard

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Color: Red Or Black
Elongation: ≥ 1.5% Tensile Strength: ≥ 160 MPa
Foil Profile: RA≤0.15μm,Rz≤1.7μm Length Per Roll: 500 - 5000 Meter

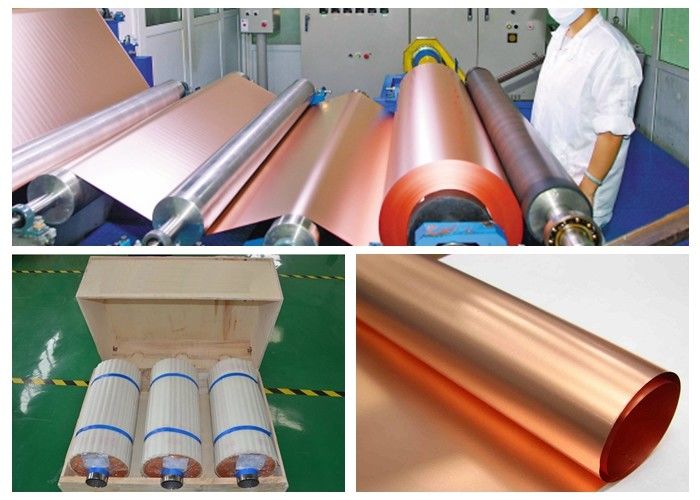

35 um high temperature elongation ED copper foil for High frequency microwave circuit.



Specification Introduction.



single side side treatment low profile foil in back/red.

Nominal Thickness:0.035mm.

Width: 5-1380mm,Max width :1380mm,standard width:1290mm.

Length: 500-5000 M.

ID: 76 mm,152 mm.

purity:99.9%.

Quality standard:IPC 4562.





Description.



1. the treated foil in gray or red.

2. High peel strength.

3. Good etch ability.

4. Excellent adhesion to etching resist.

5. Anti foil cracking by high elongation at elevated temperature.

6. Eco-friendly products and processes.



HTE copper foil with high elongation copper foil at high temperature

Thickness um 9 12 18 25 35 70

IPC 4562

4.6.3.1



Area weight g/m² 80±1 107±3 153± 215±5 285±5 585±8

IPC 4562

4.6.3.2

Roughness (RA) μm 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4

IPC 4562

4.6.9

(RZ) μm <6.0 <6.5 <8.0 <9.0 ≤10.0 <15



Copper≧

% 99.8

IPC 4562

4.6.3.1



Tensile Strength state normal Mpa >300 >300 >300 >300 >300 >280

IPC 4562

4.6.4

state temper (180℃) Mpa >15.0 >18.0 >18.0 >18.0 >18.0 >18.0
ElongationI state normal % >3.0 >3.0 >5.0 >6.0 >10.0 >10.0

IPC 4562

3.5.3

state temper (180℃) % >2.0 >2.5 >2.5 >3.0 >5.0 >5.0
Peel strength N/mm >1.0 >1.05 >1.35 >1.70 >1.8 >2.0

IPC 4562

4.6.7

High temperature oxidation resistance(200℃,

40min)

No color change Standard
Solderability Good Standard
Solderability Good

IPC 4562

4.6.12

Standard Width,1295(±1)mm,May according to the customer request tailor.

We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.





Classification.



(HD-E)-high ductility electrodeposited copper foil.

(HTE-E)-high temperature elongation electrodeposited copper foil.

(LP-E)-low profile electrodeposited copper foil.

(VLP-E)-very low profile electrodeposited copper foil.



HTE Copper foil Application:

1. Polyimide board.

2. Epoxy board.

3. PCB and antenna PCB.



FAQ:



Q1. what is your standard width?

A: 1380/1290 mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.



Q2. Length per roll?

A: 500-5000meter



Q3.what is the Internal diameter?

A: 76/152/ custom



Q4.Are the package suitable For export ?

A: Yes , it is suitable for export.

Contact Details
JIMA Copper

Contact Person: Mr.huang

Tel: +8615000729029

Send your inquiry directly to us (0 / 3000)
