Electrolytic Electrodeposited Copper Foil , 3 / 6 Inch ID Sheet Metal Copper

China Electrolytic Electrodeposited Copper Foil , 3 / 6 Inch ID Sheet Metal Copper supplier

Large Image :  Electrolytic Electrodeposited Copper Foil , 3 / 6 Inch ID Sheet Metal Copper

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Pinholes: None
Color: Red Or Black Peel Strength: ≥ 1 N/mm
Foil Profile: RA≤0.15μm,Rz≤1.7μm Length Per Roll: 500 - 5000 Meter
Inter Diameter: 76 Mm,152 Mm, 3 Inch,6 Inch

Small coil 15 mic LB double shiny ED electrolytic copper foil for lithium Power battery



Description



Type Lithium Battery Copper Foil (Single/Double Matte)
Thickness 15um
Width Range 100~1300mm
Performance Columnar grain structure formation.

Comparing with the double shiny copper foil, the double matte type is

Higher in roughness, while the tensile strength and elongation is lower.

Application Be used for the Li-ion battery cathode carrier and current collector.



Application:

1. Lip: mobile phone

2. Parallel hybrid electric vehicle(PHEV)





Compare between CA copper foil and ED copper foil



1. Process:RA copper foil (Rolling process),ED copper foil (Electrodeposition process)

2. RA copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.

3. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm





FAQ:



Q4: Can you supply the sample?



A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.



Q5. Do you test all your goods before delivery?


A: Yes, we have 100% test before delivery.



Q6. what is your standard width?



A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.



Typical properties of electrolytic ED copper foil lithium battery

Classification Unit Requirement   Test Method
Foil Designation /               IPC-4562A
Nominal thickness / 6um 7um 8um 9/10um 12um 15um 20um IPC-4562A
Area Weight g/㎡ 54±1 63±1.25 72±1.5 89±1.8 107±2.2 133±2.8 178±3.6

IPC-TM-650

2.2.12.2

Purity ≥99.9

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) um 0.1-0.4

IPC-TM-650

2.3.17

Matte side(Rz) um 0.8-2.0
Tensile Strength R.T.(23℃) Mpa >280

IPC-TM-650

2.3.18

H.T.(180℃) >200
Elongation R.T.(23℃) >5

IPC-TM-650

2.3.18

H.T.(180℃) >3
Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 90   /
H.T.(160℃) Minutes 15   /

6. Max Width,1295(±1)mm,May according to the customer request tailor.

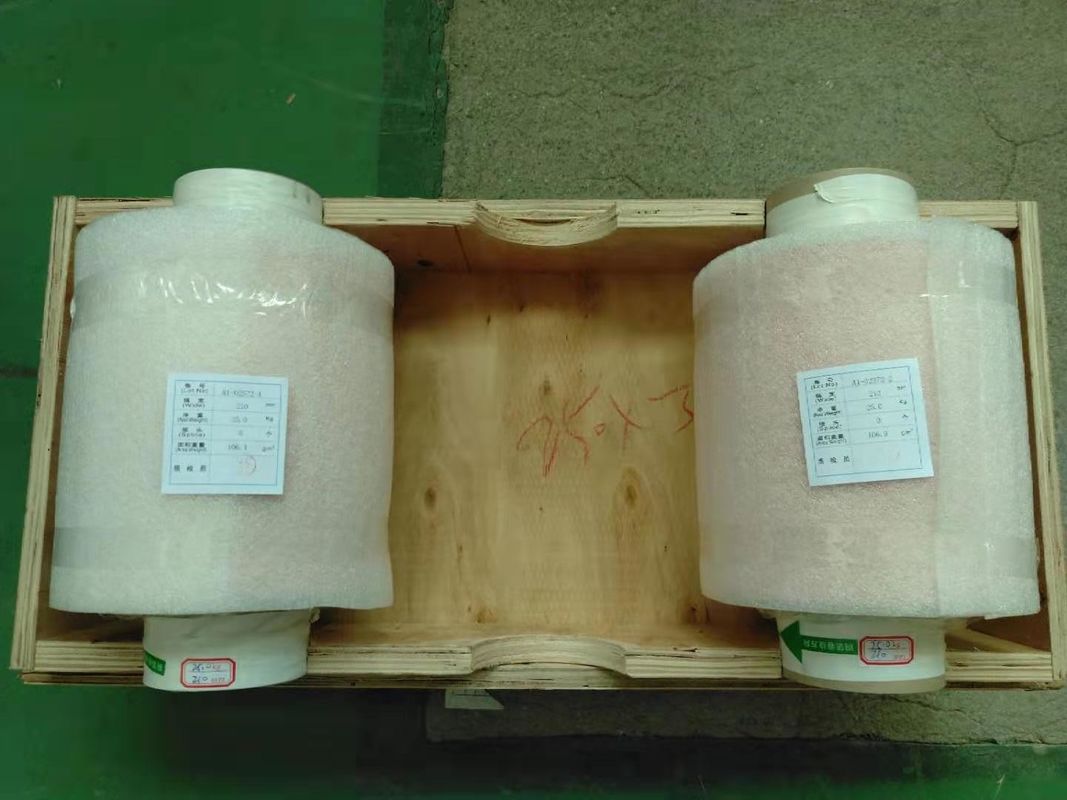

Package:wooden carton & PHOTOS
