| Place of Origin: | china |
| Brand Name: | JIMA |
| Certification: | SGS, ISO,Reach, RoHS |
| Model Number: | RACULP-S-B/G/R |
| Minimum Order Quantity: | 100kg |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 Ton per month |
| Purity: | 99.95% | Thickness: | 35μm,1 Oz,0.035mm |
|---|---|---|---|
| Elongation: | ≥ 5% | Tensile Strength: | ≥ 150 MPa |
| Length Per Roll: | 500 - 5000 Meter | ||
| High Light: | expanded copper foil,soft copper sheet |
||

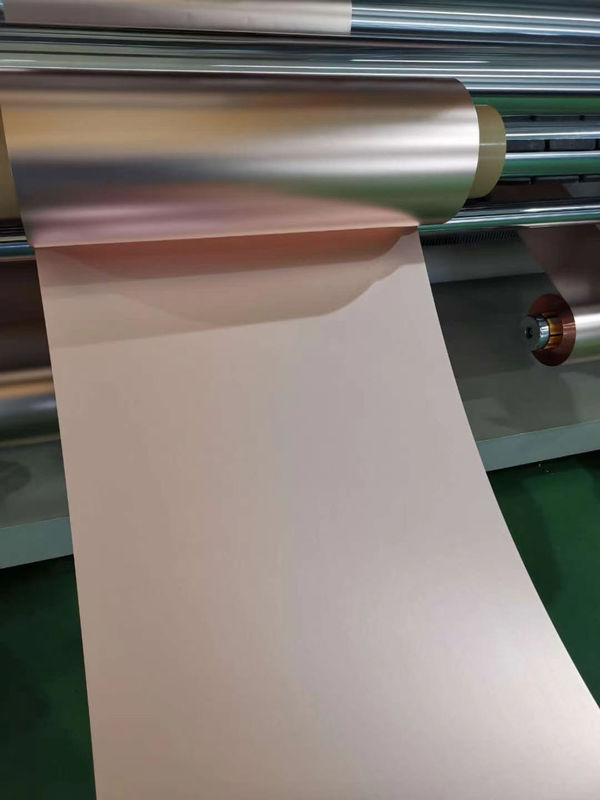

Soft Thickness 0.035mm (35um) annealed RA Roll copper foil For copper foil tape
Quickly details
Rolls Width: 5-620 mm
Core ID: 40mm,76 mm,152 mm
Foil Temper: soft
Area Weight: 311±10g/㎡
Elongation(%): 15
Tensile Strength(MPa):200-230
Compare between CA copper foil and ED copper foil
. Strength toughness: RA foil is a flaky crystalline structure and the strength and toughness is better than ED foil.
. Width: RA foil ≤ 610mm, ED foil ≤ 1370mm
Features:
. Good in Bending.
. Conductive Excellent uniformity.
. Good Softness.
Application:Mylar tape,Conductive tape,EMI tape.
Package picture : wooden carton.
FAQ:
Q1: Quality guarantee?
A: 6 months guarantee after goods received, pls dont open the sealing bag before use it .
Q2: What's your MOQ?
A: The minimum order quantity is 50 kg.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
All thickness tape copper foil Technical data sheet
| Thickness | 0.009-0.09mm | Width≤620mm | ||||||||
| Item | Unit |
Parameter |
||||||||
| Thickness | MM | 0.009 | 0.012 | 0.020 | 0.035 | 0.07 | 0.09 | |||
| Grade | － | C1100 | C1100 | C1100 | C1100 | C1100 | C1100 | |||
|
Copper content |
% | ≥99.95 | ≥99.95 | ≥99.95 | ≥99.95 | ≥99.95 | ≥99.95 | |||
| Area Weight | g/㎡ | 80±2 | 107±4 | 178±6 | 311±10 | 623±19 | 801±24 | |||
| Roughness | (RA) | Um | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||
|
Tensile Strength |
Temper soft (O) | Mpa | 150-180 | 160-200 | 180-220 | 200-230 | 210-240 | 220-260 | ||
|
Elongation(%) |
Temper soft (O) | % | ≥5 | ≥6 | ≥8 | ≥15 | ≥20 | ≥25 | ||
| Inter diameter | mm | 3in,6in,80mm | ||||||||
| Storage condition | － | T≤25℃,RH≤60%,180 days | ||||||||
Remark:Other thickness products can be customized
