Color Uniformity Copper Flashing Rolls , ISO RA Annealed Soft Copper Foil

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

Color Uniformity Copper Flashing Rolls , ISO RA Annealed Soft Copper Foil

China Color Uniformity Copper Flashing Rolls , ISO RA Annealed Soft Copper Foil supplier

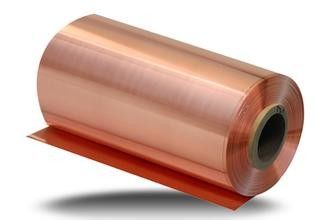

Large Image :  Color Uniformity Copper Flashing Rolls , ISO RA Annealed Soft Copper Foil

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: RACULP-S-B/G/R

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: Negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Elongation: ≥ 5% Tensile Strength: ≥ 150 MPa
Roughness: RA≤0.2μm Application:: Mylar Tape

Thickness 0.012mm (12um) Color uniformity Roll RA annealed soft copper foil For EMI tape





Quickly details



ID: 40mm,76 mm,152 mm

Length: ≤ 5000 meter

Alloy: T2

Temper: O



Features:

. EMI shielding

. Color Excellent uniformity.

. Soft temper



Application: EMI tape

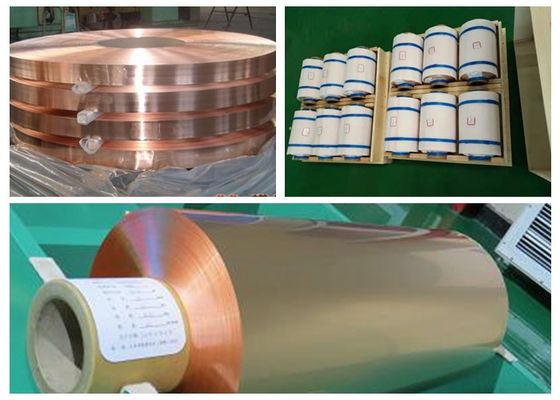

Details Packaging : wooden box



Compare between CA copper foil and ED copper foil



. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm



. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.



FAQ:



Q1: if provide free  sample?



A: We can supply A4 free sample.



Q2. if provide test report before delivery?


A: Yes, we will be.



Q3. what is your standard width?



A: common 620mm,we accept customization for the width.


TDS of Copper foil for EMI tape
Thickness 0.009-0.09mm Width≤620mm
Item Unit



Parameter


Thickness MM 0.009 0.012 0.020 0.035 0.07 0.09
Grade C1100 C1100 C1100 C1100 C1100 C1100



Copper content

% ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 80±2 107±4 178±6 311±10 623±19 801±24
Roughness (RA) Um ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2



Tensile Strength

Temper soft (O) Mpa 150-180 160-200 180-220 200-230 210-240 220-260



Elongation(%)

Temper soft (O) % ≥5 ≥6 ≥8 ≥15 ≥20 ≥25
Inter diameter mm 3in,6in,80mm
Storage condition T≤25℃,RH≤60%,180 days



Remark: Accept customized
