Mylar Tape Roll Of Copper Foil , High Tensile Strength Copper Roll Flashing

I'm Online Chat Now

Mylar Tape Roll Of Copper Foil , High Tensile Strength Copper Roll Flashing

China Mylar Tape Roll Of Copper Foil , High Tensile Strength Copper Roll Flashing supplier

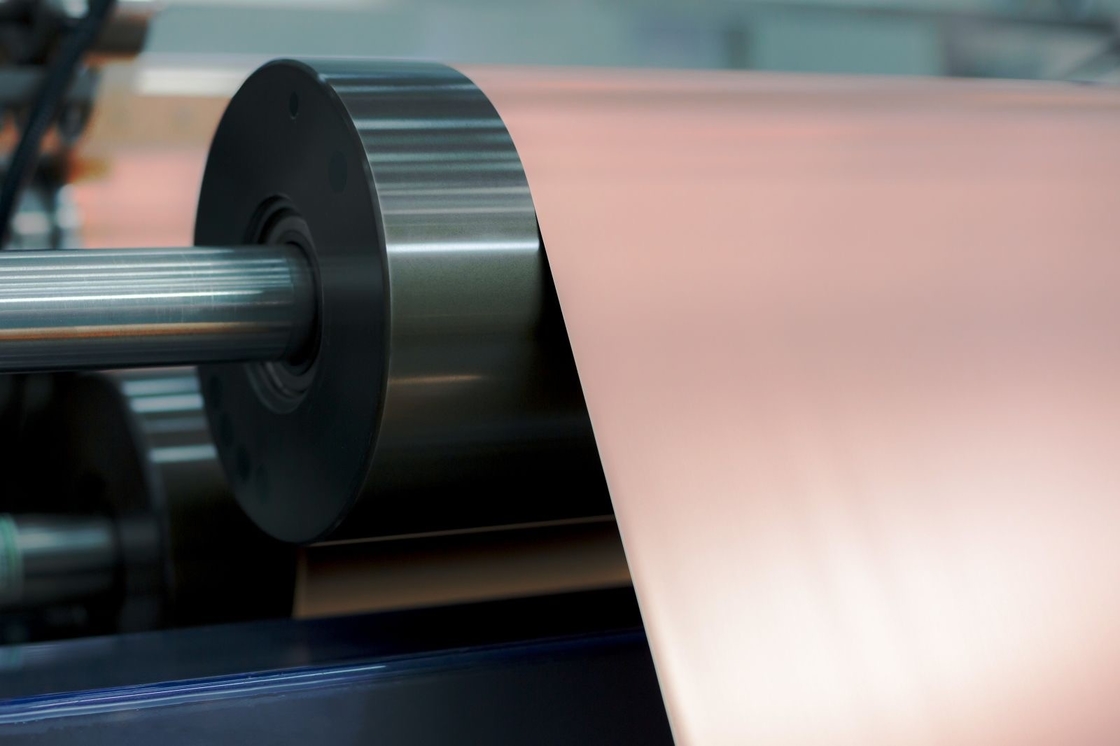

Large Image :  Mylar Tape Roll Of Copper Foil , High Tensile Strength Copper Roll Flashing

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: RACULP-S-B/G/R

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: Negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Detailed Product Description
Purity: 99.95% Pinholes: None
Storage Condition: T≤25℃,RH≤60%,180 Days Thickness: 9μm,10μm,12μm,15μm,20μm,1/2 Oz,3/4 Oz,1 Oz
Elongation: ≥ 5% Tensile Strength: ≥ 150 MPa
Roughness: RA≤0.2μm Application:: Mylar Tape
Length Per Roll: 500 - 5000 Meter Inter Diameter: 76 Mm,152 Mm,3 Inch,6 Inch,80mm

RA Roll soft annealed copper foil For Mylar tape





Quickly details



double side shiny

Thickness:0.009-0.09mm

Width: 5-620 mm

Length: 500-5000 M

ID: 40mm,76 mm,152 mm

Alloy: T2,C11000,C1100,C101,E-Cu58

Temper: O

Area Weight

Elongation(%)

Tensile Strength(MPa)





Compare between CA copper foil and ED copper foil



1. Process: rolled copper foil (Rolling process),ED copper foil (Electrodeposition process)

2. Strength toughness: rolled copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.

3. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm

4. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.

5. Surface treatment width:rolled copper foil be limited by Surface treatment widest effective width of 520mm.



Features:



1.Eco-friendly products and processes.

2.Excellent uniformity and infiltration.

3.soft temper



Application:Mylar tape,Conductive tape,EMI tape



Package:wooden carton





FAQ:



Q1: What's your guarantee?



A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.

Q2: What's your delivery time ?


A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.


Q3: What's your minimum order quantity?


A: The MOQ is 150 kg.



Q4: Can you supply the sample?



A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.



Q5. Do you test all your goods before delivery?


A: Yes, we have 100% test before delivery.



Q6. what is your standard width?



A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.



Technical data sheet of Copper foil for Mylar tape

Thickness 0.009-0.09mm Width≤620mm
Item Unit



Parameter


Thickness MM 0.009 0.012 0.020 0.035 0.07 0.09
Grade C1100 C1100 C1100 C1100 C1100 C1100



Copper content

% ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 80±2 107±4 178±6 311±10 623±19 801±24
Roughness (RA) Um ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2



Tensile Strength

Temper soft (O) Mpa 150-180 160-200 180-220 200-230 210-240 220-260



Elongation(%)

Temper soft (O) % ≥5 ≥6 ≥8 ≥15 ≥20 ≥25
Inter diameter mm 3in,6in,80mm
Storage condition T≤25℃,RH≤60%,180 days



Remark:Other thickness products can be customized
