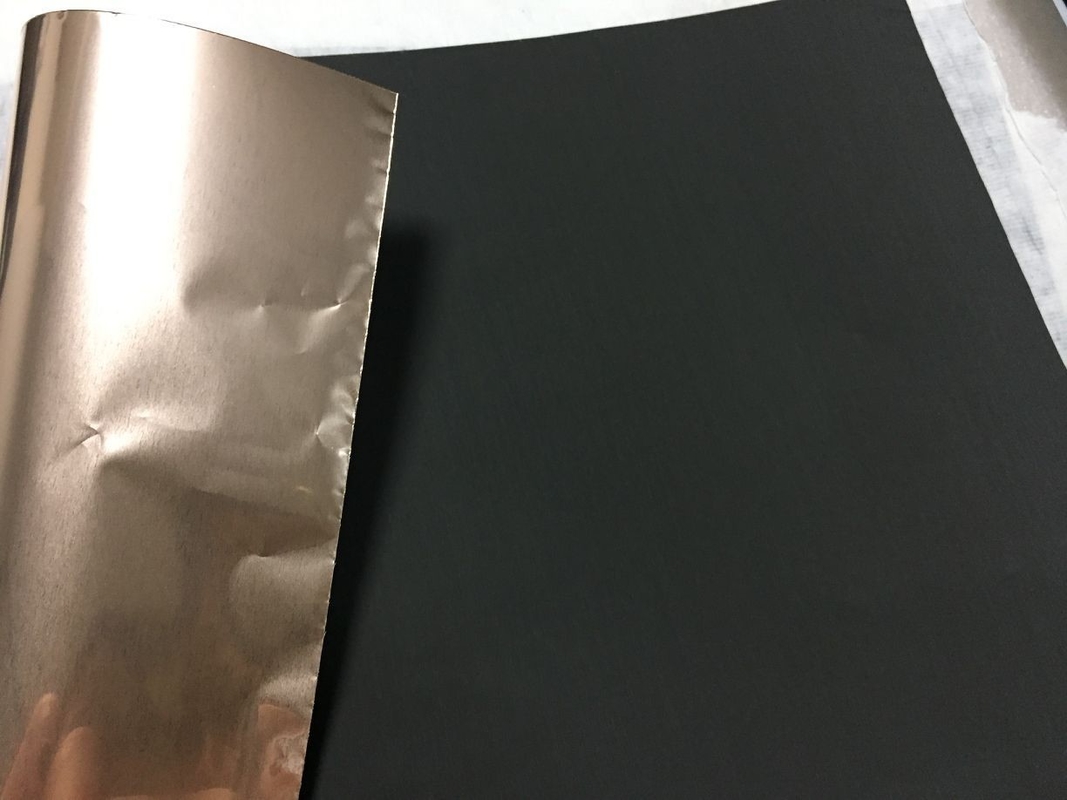

Blackened Black Surface Treatment 18um 35um 70um Rolled Copper Foil

Blackened Black Surface Treatment 18um 35um 70um Rolled Copper Foil

Blackened Black Surface Treatment 18um 35um 70um Rolled Copper Foil
video
Blackened Black Surface Treatment 18um 35um 70um Rolled Copper Foil
Product Details:
Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: RACULP-S-B/G/R
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Thickness: 1/2 Oz,18um,0.018mm Color: Black
Item: Blackened Black Surface Treatment 18um 35um 70um Rolled Copper Foil ID: 76MM,152MM
High Light:

copper foil sheet

,

copper sheet roll

Thickness 0.018mm (1/2oz, 18um) single side black treated RA Copper foil For FCCL

Blackened Black Surface Treatment 18um 35um 70um Rolled Copper Foil



Quickly details



. Cu foil Thickness: 18um

. Width: 5-520 mm

. ID: 3 inch ,6 inch

. Grade:THB111Y

. Application: FPC



Features:



1. Black surface treatement

2. This product with good etching performance

3. Low profile enables to make fine circuit pattern

4, Low roughness,high flexibility

5, Excellent etching performance



Application:



1. Suitable for Lamination type FCCL

2. Chip on flex for LED

3. STIFFENER

4. Semi-flex CCL





FAQ:



Q1: What's your guarantee?



A: Any quality problem can contact us. and 6 months quality guarantee after received goods.

Q2: What's your delivery time ?


A: Delivery time is 35 working days. The specific delivery time depends on production time.



Q5. Do you test all your goods before delivery?


A: Yes, we have 100% test before delivery.



Q6. what is your standard width?



A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.




Technical data sheet for FPC with full size as following:



Thickness 0.10/0.012/0.018/0.025/0.035mm Width ≤520mm
Item Unit



Parameter


Thickness MM 0.010 0.012 0.018 0.025 0.035
Grade C1100 C1100 C1100 C1100 C1100



Copper content

% ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/m2 89±3 107±4 160±5 222±7 305±10
Roughness (RA) Um ≤0.15 ≤0.15 ≤0.15 ≤0.15 ≤0.15
(RZ) Um ≤1.7 ≤1.7 ≤1.7 ≤1.7 ≤1.7



Tensile Strength(MP)

State normal Mpa ≥360 ≥380 ≥400 ≥400 ≥400
State temper (180℃) Mpa ≥160 ≥160 ≥160 ≥160 ≥160



Elongation(%)

State normal % ≥1.0 ≥1.2 ≥1.4 ≥1.4 ≥1.4
state temper l(180℃) % ≥7 ≥8 ≥10 ≥10 ≥10
MIT State normal Time ≥2400 ≥2400 ≥2400 ≥2400 ≥2400
state temper (180℃) Time ≥2400 ≥2400 ≥2400 ≥2400 ≥2400
Peel strength N/mm ≥0.8 ≥1.0 ≥1.3 ≥1.35 ≥1.4
High temperature oxidation resistance(180℃ 1hour)

Qualified



Qualified



Qualified



Qualified



Qualified





Remark: Standard Width,520(±1)mm, we accept customization.

Blackened Black Surface Treatment 18um 35um 70um Rolled Copper Foil 0

Blackened Black Surface Treatment 18um 35um 70um Rolled Copper Foil 1

Blackened Black Surface Treatment 18um 35um 70um Rolled Copper Foil 2
