| Place of Origin: | china |
| Brand Name: | JIMA |
| Certification: | SGS, ISO,Reach, RoHS |
| Model Number: | EDCUHTE |
| Minimum Order Quantity: | 100kg |
|---|---|
| Price: | usd 15-20 kg |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-15 days |
| Supply Ability: | 1000 Ton per month |
| Purity: | 99.9% | Pinholes: | None |
|---|---|---|---|
| Anti Oxidation: | 160 Degree 15 Minutes, 90 Days 23 Degree | Thickness: | 6μm，7μm，8μm，9μm，10μm，12μm，15μm，20μm，1/2 Oz,3/4 Oz,1 Oz,2 Oz,3 Oz, |
| Color: | Red | Elongation: | ≥ 5% |
| Tensile Strength: | ≥ 200 MPa | Peel Strength: | ≥ 1 N/mm |
| Application: | 1.Lib: Notebook PC, Mobile Phone. 2.Lip: Mobile Phone 3.XEV: Hybrid-electric Vehicle.(HEV) 4.Parallel Hybrid Electric Vehicle(PHEV) 5.Electric Vehicle(EV) | ||
| High Light: | large copper sheet,sheet metal copper |
||
LB double shiny electrodeposited ED electrolytic copper foil for lithium battery

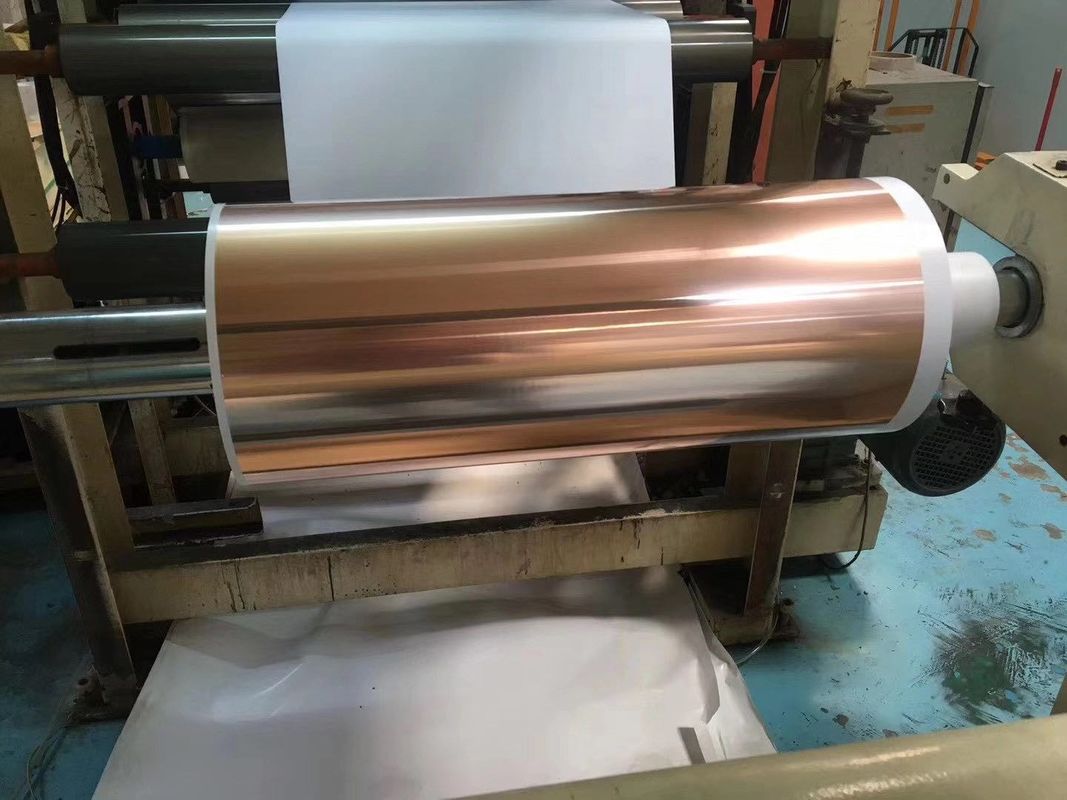

Lithium Ion Battery Copper Foil 6um 7um 8um 10um / Large Copper Sheet Roll
Features:
1. double shiny side ,superior rupture endurance.
2. Stable properties suitable for high capacity rechargeable battery .
3. Eco-friendly products and processes.
4. Excellent uniformity and infiltration.
Application:
1. Lib: notebook PC, mobile phone.
2. Lip: mobile phone
3. XEV: hybrid-electric vehicle.(HEV)
4. Parallel hybrid electric vehicle(PHEV)
5. Electric vehicle(EV)
Typical properties of electrolytic ED copper foil lithium battery
| Classification | Unit | Requirement | Test Method | ||||||||
| Foil Designation | / | IPC-4562A | |||||||||
| Nominal thickness | / | 6um | 7um | 8um | 9/10um | 12um | 15um | 20um | IPC-4562A | ||
| Area Weight | g/㎡ | 54±1 | 63±1.25 | 72±1.5 | 89±1.8 | 107±2.2 | 133±2.8 | 178±3.6 |
IPC-TM-650 2.2.12.2 |
||
| Purity | ％ | ≥99.9 |
IPC-TM-650 2.3.15 |
||||||||
| Foil Profile | Shiny side (Ra) | um | 0.1-0.4 |
IPC-TM-650 2.3.17 |
|||||||
| Matte side(Rz) | um | 0.8-2.0 | |||||||||
| Tensile Strength | R.T.(23℃) | Mpa | ＞280 |
IPC-TM-650 2.3.18 |
|||||||
| H.T.(180℃) | ＞200 | ||||||||||
| Elongation | R.T.(23℃) | ％ | ＞5 |
IPC-TM-650 2.3.18 |
|||||||
| H.T.(180℃) | ＞3 | ||||||||||
| Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
||||||||
| Anti-oxidization | R.T.(23℃) | day | 90 | / | |||||||
| H.T.(160℃) | Minutes | 15 | / | ||||||||
