0.025mm Thick ED Copper Foil , Copper Foil 25 micron

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

0.025mm Thick ED Copper Foil , Copper Foil 25 micron

China 0.025mm Thick ED Copper Foil , Copper Foil 25 micron supplier

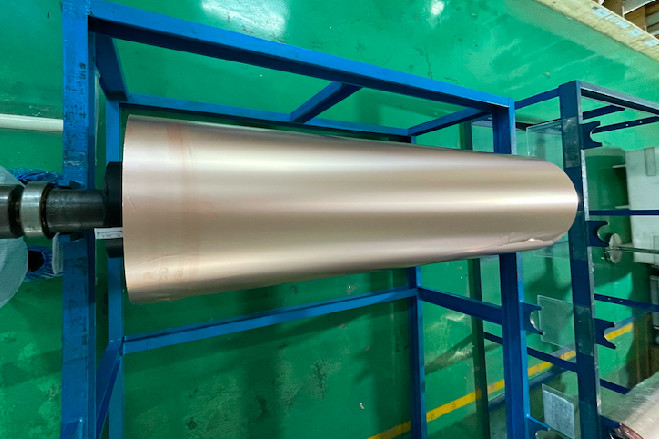

Large Image :  0.025mm Thick ED Copper Foil , Copper Foil 25 micron

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 9000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.9% Anti Oxidation: 180 Degree 60 Minutes, 180 Days 23 Degree
Thickness: 25um,0.025mm Length Per Roll: 500 - 5000 Meter
Inter Diameter: 76 Mm Name: 0.025mm Thick ED Copper Foil , Copper Foil 25 Micron

0.025mm Thick ED Copper Foil , Copper Foil 25 micron



Company Information


JIMA has 20 years experience in copper foil industry, more than 27000 tons output yearly to meet the rising market requirement. In PCB, battery and shielding field, our copper foil leads the market as a material supplier. High quality product and sincere service is our fundamental to be existence and developing.



Copper Specification
Product name  ED Copper Foil 25 Micron, Insulated Copper Foil 0.025mm Thick
Copper foil thickness  25um,0.025mm
Copper type ED Copper Foil for PCB, Li-ion Battery, MRI Room sheilding copper foil ,Insulated
Copper content ≥ 99.9%
Certification ISO 9001:2008, IPC-4562, RoHS
MOQ One roll
Cut roll width Customized
Coil length and weight on request
Characteristics High Temperature Elongation, Fine and Uniform Crystal Structure
Payment Term T/T in advance, Western Union, L/C
Flatness good flatness close to 100%, without stress or others that can influence the production
Application transformer, PCB, battery, precisio



ED Copper Foil Typical Properties

Classification



Unit Requirement Test Method
Foil Designation / H M 1 IPC-4562A
Nominal thickness / 1/2 OZ 3/4 OZ 1 OZ IPC-4562A
Area Weight g/㎡ 150±5 228±8 285±10

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

Matte side(Rz) um ≤8 ≤10 ≤12
Tensile Strength

R.T.(23℃)



Mpa ≥220 ≥235 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥2 ≥3 ≥3

IPC-TM-650

2.3.18

Peel Strength(FR-4) CEM-1 N/mm ≥1.5 ≥1.7 ≥2.0

IPC-TM-650

2.4.8

PTC ≥0.5 ≥0.6 ≥0.8
Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 or customize /
H.T.(200℃) Minutes 60 or customize /



Copper Feature
1. Lightweight
2. Installed in more MRI Sites Worldwide than any other shield system.
3. Can be used with either a monolithic RF Floor (moisture resistance) or a modular RF Floor.
4. Copper Serves as an eddy current shield for EMI Protection



The Production Flow :



0.025mm Thick ED Copper Foil , Copper Foil 25 micron



Copper Foil Photos

0.025mm Thick ED Copper Foil , Copper Foil 25 micron
