6um 8um 10um Rolled Copper Foil For Negative Current Collector Li - Ion Battery

China 6um 8um 10um Rolled Copper Foil For Negative Current Collector Li - Ion Battery supplier

Large Image :  6um 8um 10um Rolled Copper Foil For Negative Current Collector Li - Ion Battery

Product Details:

Place of Origin: CHINA
Brand Name: JIMA
Certification: YS/T 1039-2015
Model Number: THB110

Payment & Shipping Terms:

Minimum Order Quantity: Negotiations
Price: Negotiations
Packaging Details: wooden box
Delivery Time: 10~30days
Payment Terms: L/C, T/T
Supply Ability: 5000 ton
Contact Now
Detailed Product Description
Name: 6um 8um 10um Rolled Copper Foil For Li-ion Battery Width: 300~630mm
Package: Standard Wooden Box Aoplication: Energy Storage,power
Thickness: 6-20um

6um 8um 10um Rolled Copper Foil For Li-ion battery for negative current collector of Li-ion battery



Rolled copper foil for Li-ion Battery-THB110S
Product Features:
1. For Negative Current Collector of Li-ion Battery
2.Low Roughness,High Ductility,High Strength

3.High Temperature Oxidation Resistance


Application Fields

Energy storage,power



Data:

Item Unit Requirement Test Method
6um 8um 10um
Basic Weight g/㎡ 49.6-51.2 66.1-70.4 83.5-88.5 GB/T29847-2013
Tensile Strength N/m㎡ ≥370 ≥380 ≥400 GB/T29847-2013
Elongation % ≥0.5 ≥0.8 ≥1.0 GB/T29847-2013
Purity % ≥99.95 GB/T 5121
Width Accuracy mm ±1.5 GB/T 26303
Surface Roughness(Ra) um ≤0.20 GB/T29847-2013
Wetting Tensile X103 N/m ≥38 GB/T22638.4-2008
Oxidation Resistance 140℃ X 15min Non-oxidation,Non-Discoloring Q/TBJB 010-2016

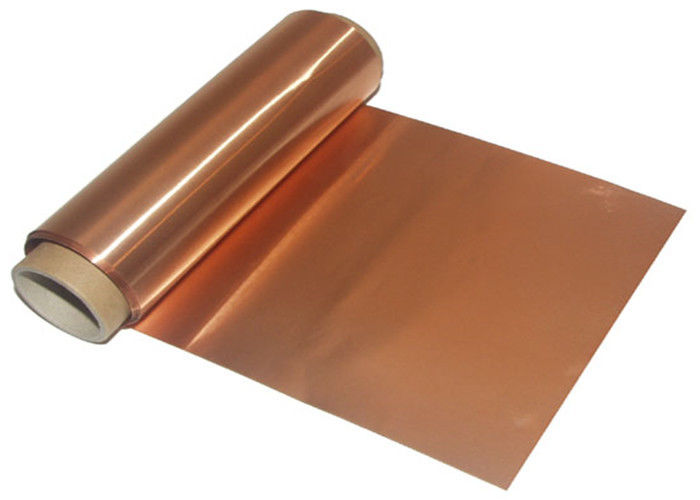

Product pictures

6um 8um 10um Rolled Copper Foil For Negative Current Collector Li - Ion Battery





The company has imported a complete set of international advanced level production equipments and experiment instrument for electronic rolled copper foil.
