Single Side Type Copper Foil Sheet 18 Micron Width 530 Mm With High Peel Strength

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

Single Side Type Copper Foil Sheet 18 Micron Width 530 Mm With High Peel Strength

China Single Side Type Copper Foil Sheet 18 Micron Width 530 Mm With High Peel Strength supplier

Large Image :  Single Side Type Copper Foil Sheet 18 Micron Width 530 Mm With High Peel Strength

Product Details:

Place of Origin: CHINA
Brand Name: JIMA
Certification: ISO9001:2008,ISO14001:2004,T28001-2011
Model Number: EDCU

Payment & Shipping Terms:

Minimum Order Quantity: Negotiations
Price: Negotiations
Packaging Details: wooden box
Delivery Time: 10~20days
Payment Terms: L/C, T/T
Supply Ability: 6000MT per year
Contact Now
Detailed Product Description
Name: 18 Micron EDCU Electrolytic Copper Foil Single Side Type With Width 530 Mm For Samsung Mobile Phone Standard: GB/T5230-1995,IPC-456
Package: Standard Wooden Box Coil ID: 76MM
Application: Samsung Mobile Phone Thickness: 18um,18micron
Width: 530mm Stype: Single Side Matte ,single Side Shiny

Products Name



18 micron EDCU electrolytic copper foil single side type with width 530 mm for Samsung mobile phone



Quickly info.



1.  Thickness:18um,18 micron

2.  Width:530mm

3.  Application:Samsung mobile phone

4.  Standard:GB/T5230-1995,IPC-456

5.  Single side matte /single side shiny



Features:

1.the treated foil in gray or red

2.High peel strength



Typical properties of Standard EDCU copper foil for 18um

Classification



Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ

1

OZ

2

OZ

3

OZ

IPC-4562A
Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength

R.T.(23℃)



Mpa ≥150 ≥220 ≥235 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥2 ≥3 ≥3 ≥4 ≥4 ≥4

IPC-TM-650

2.3.18

Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162

IPC-TM-650

2.5.14

Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1

IPC-TM-650

2.4.8

Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 /
H.T.(200℃) Minutes 60 /

1.Standard Width,1290(±1)mm,May according to the customer request tailor.

2.We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.



FAQ:



Q2: Can you offer the sample?

A: We can supply samples FOR check .



Q3. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.



Q4.what is the Internal diameter?
A:76MM



Q5. Can you provide COA?
Yes , we can.



Q6. Can we come to China visit factory ?
A:Yes ,you can .



Q7. Can you cut into small size?
A:Yes, we can cut into as per your ,but cost will be higher.



Materials mark  :

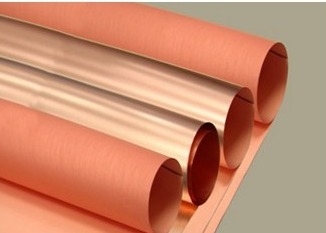

Single Side Type Copper Foil Sheet 18 Micron Width 530 Mm With High Peel Strength

Package &specificaton Detail SHOW: Standard wooden box.

Single Side Type Copper Foil Sheet 18 Micron Width 530 Mm With High Peel Strength
