Standard Width Copper Sheet Roll 12um Thickness With Good Etching Resist Adhesion

China Standard Width Copper Sheet Roll 12um Thickness With Good Etching Resist Adhesion supplier

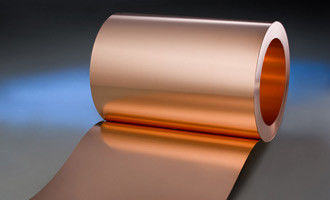

Large Image :  Standard Width Copper Sheet Roll 12um Thickness With Good Etching Resist Adhesion

Product Details:

Place of Origin: CHINA
Brand Name: JIMA
Certification: ISO9001:2008,ISO14001:2004,T28001-2011
Model Number: EDCU

Payment & Shipping Terms:

Minimum Order Quantity: Negotiations
Price: Negotiations
Packaging Details: wooden box
Delivery Time: 10~20days
Payment Terms: L/C, T/T
Supply Ability: 6000MT per year
Contact Now
Detailed Product Description
Name: 12 Micron EDCU Electrolytic Copper Foil Single Side Matte With Width 530 Mm For Samsung Mobile Phone Standard: GB/T5230-1995,IPC-456
Package: Standard Wooden Box Coil ID: 76MM
Application: Samsung Mobile Phone Thickness: 12um,12 Micron
Width: 530mm Stype: Single Side Matte ,single Side Shiny

Products Name



12 micron EDCU electrolytic copper foil single side matte with width 530 mm for Samsung mobile phone



Quickly info.



1.  Thickness:12um

2.  Width:530mm

3.  Application:Samsung mobile phone

4.  Standard:GB/T5230-1995,IPC-456

5.  Single side matte /single side shiny



Features:

1.the treated foil in gray or red

2.High peel strength

3.Good etch ability

4.Excellent adhesion to etching resist



Typical properties of Standard EDCU copper foil

Classification



Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ

1

OZ

2

OZ

3

OZ

IPC-4562A
Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength

R.T.(23℃)



Mpa ≥150 ≥220 ≥235 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥2 ≥3 ≥3 ≥4 ≥4 ≥4

IPC-TM-650

2.3.18

Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162

IPC-TM-650

2.5.14

Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1

IPC-TM-650

2.4.8

Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 /
H.T.(200℃) Minutes 60 /

1.Standard Width,1290(±1)mm,May according to the customer request tailor.

2.We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.



FAQ:

Q1: What's your guarantee?

A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.



Q2: Can you supply the sample?

A: We can supply samples FOR check .



Q3. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.



Q4.what is the Internal diameter?
A:76MM



Q5. Can you provide COA?
Yes , we can.



Q6. Can we come to China visit factory ?
A:Yes ,you can .



Q7. Can you cut into small size?
A:Yes, we can.



Materials mark  :

Standard Width Copper Sheet Roll 12um Thickness With Good Etching Resist Adhesion

Package &specificaton Detail SHOW: Standard wooden box.

Standard Width Copper Sheet Roll 12um Thickness With Good Etching Resist Adhesion
