1290mm Width HTE CU Electrodeposited Copper Foil 70 / 35um Thickness For PCB Laminate

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

1290mm Width HTE CU Electrodeposited Copper Foil 70 / 35um Thickness For PCB Laminate

China 1290mm Width HTE CU Electrodeposited Copper Foil 70 / 35um Thickness For PCB Laminate supplier

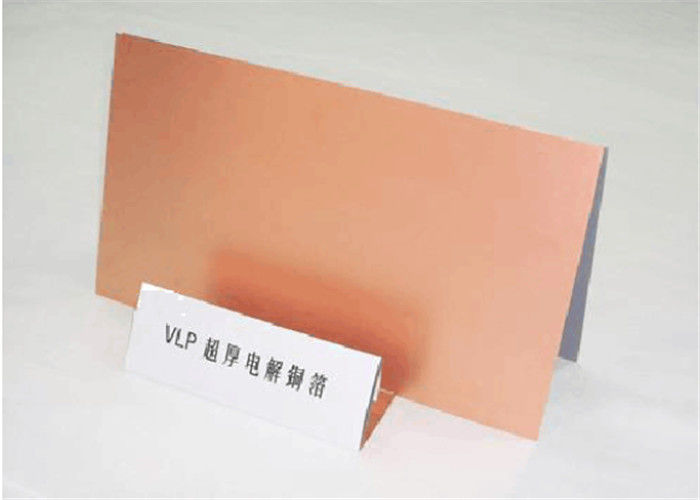

Large Image :  1290mm Width HTE CU Electrodeposited Copper Foil 70 / 35um Thickness For PCB Laminate

Product Details:

Place of Origin: China
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard wooden carton
Delivery Time: 5-20days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Thickness: 70um,35um
Color: Red Or Black Standard: IPC-4562
Inter Diameter: 76 Mm Products Name: 1290mm Width HTE CU Foil Copper Foil Vendor In 35 & 70um For PCB Laminate

1290mm width HTE CU foil copper foil vendor in 35 & 70um for PCB laminate



Detail Specification:

Single side treatment in red. and single Side Shiny
Thickness: 70um & 35um
Width range: 5-1380mm,and standard width:1290mm,max 1380mm width

high temperature elongation copper foil :120 min (180 °C in Atmosphere)

Internal diameter: 76MM
Standard :IPC-4562



Copper foil Application


Application 2>PCB manufacture
  3>antenna PCB


4>PCB laminate

5>Multi-layer printed circuit boards/Multi-layer PCB



Features and advantages

1.The thermally stable microstructures with their stable mechanical properties

2. Improve dimensional stability

3.Reduce bulging, warping and nail head formation.

These resist thermal outliers which typically occur during laminates.



HTE ED copper foil Technical Terms (high elongation copper foil at high temperature).

Thickness um 18 25 35 70

IPC 4562

4.6.3.1

Area weight g/m² 153± 215±5 285±5 585±8

IPC 4562

4.6.3.2

Roughness (RA) μm 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4

IPC 4562

4.6.9

(RZ) μm <8.0 <9.0 ≤10.0 <15



Copper≧

% 99.8

IPC 4562

4.6.3.1

Tensile Strength state normal Mpa >300 >300 >300 >280

IPC 4562

4.6.4

state temper (180℃) Mpa >18.0 >18.0 >18.0 >18.0
ElongationI state normal % >5.0 >6.0 >10.0 >10.0

IPC 4562

3.5.3

state temper (180℃) % >2.5 >3.0 >5.0 >5.0
Peel strength N/mm >1.35 >1.70 >1.8 >2.0

IPC 4562

4.6.7

High temperature oxidation resistance(200℃,

40min)

No color change Standard
Solderability Good Standard
Solderability Good

IPC 4562

4.6.12

3. Standard Width,1290(±1)mm,May according to the customer request tailor.

RFQ:
Q1: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.

Q2: What's your delivery time ?
A: The common delivery time is 5-25working days. depend on your order quanity

Q4: Can you supply the sample?
A: Yes,We can

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q6. Can you cut into size as request?
Yes, we can.

Q9. Can we come to China visit factory ?
Yes ,you can .
Production flow :
1290mm Width HTE CU Electrodeposited Copper Foil 70 / 35um Thickness For PCB Laminate



Package detail:wooden box

1290mm Width HTE CU Electrodeposited Copper Foil 70 / 35um Thickness For PCB Laminate
