1100mm Electrolytic Copper Sheet Metal Roll 18um Thickness Min 2 % Elongation

China 1100mm Electrolytic Copper Sheet Metal Roll 18um Thickness Min 2 % Elongation supplier

Large Image :  1100mm Electrolytic Copper Sheet Metal Roll 18um Thickness Min 2 % Elongation

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 7-20 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Thickness: 18um Length Per Roll: 500 - 5000 Meter
Inter Diameter: 76 Mm, 3 Inch, Name: 1100mm Electrolytic Copper Foil Rolls 18 Micron For Copper Clad Laminates/CCL
Application: Copper Clad Laminates/CCL Splice: No

​Products Name



1100mm Electrolytic Copper Foil Rolls 18 micron for Copper Clad Laminates/CCL



Specifications

  1. T: 18micron,18um
  2. W: 5-1380 mm,standard width is 1290mm,common width have 1100mm,1290mm,1070mm,1300mm,1350mm.
  3. L: 500-5000 M
  4. ID: 76 mm
  5. roll weight ,accept custom
  6. splice:No
  7. Width Tolerance:+/-1,5mm for 1100mm width
  8. Elongation:min.2%

Application:

Epoxy board,copper clad laminates,CCL



Typical properties of Standard electrolytic copper foil for copper clad laminates/CCL



Classification



Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ

1

OZ

2

OZ

3

OZ

IPC-4562A
Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength

R.T.(23℃)



Mpa ≥150 ≥220 ≥235 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥2 ≥3 ≥3 ≥4 ≥4 ≥4

IPC-TM-650

2.3.18

Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162

IPC-TM-650

2.5.14

Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1

IPC-TM-650

2.4.8

Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 /
H.T.(200℃) Minutes 60 /

1. Standard Width,1290(±1)mm,May according to the customer request tailor.



FAQ:



Q2: Can you supply the sample?

A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.



Q3:What's your sandard package ?

A:wooden box,also accept your custom.

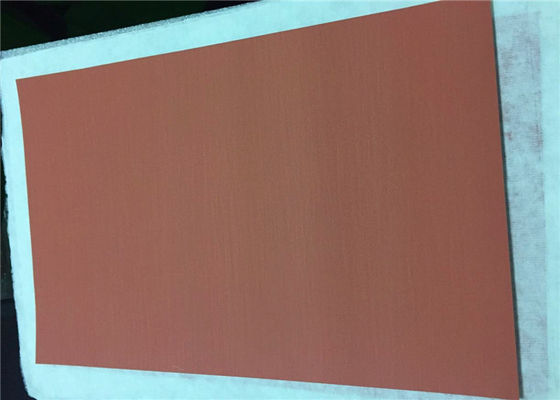

Package & copper foil photo  show :

1100mm Electrolytic Copper Sheet Metal Roll 18um Thickness Min 2 % Elongation
