| Place of Origin: | china |
| Brand Name: | JIMA |
| Certification: | SGS, ISO,Reach, RoHS |
| Model Number: | EDCU-HC |
| Minimum Order Quantity: | 100kg |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 Ton per month |
| Purity: | 99.95% | Pinholes: | None |
|---|---|---|---|
| Anti Oxidation: | 180 Degree 60 Minutes, 180 Days 23 Degree | Color: | Red |
| Products Name: | Double Side Polish Electrolytic Copper Foil For Li-Ion Battery Thickness 8um | Width: | Width 480mm And 600mm |
| High Light: | pure copper foil,copper sheet plate |
||
Products introduction :

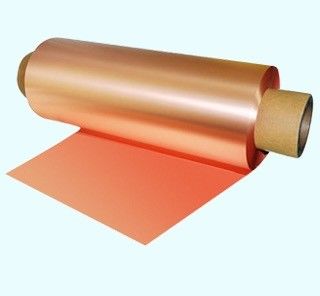

Double Side Polish Electrolytic Copper Foil For Li-Ion Battery Thickness 8um
Features:
1. Double shiny or double polish
2. Stable properties suitable for high capacity rechargeable battery .
3. Eco-friendly products and processes.
4. Excellent uniformity and infiltration.
Quickly info
| Thickness: 8um |
| Width:480mm and 600mm |
| Length: 500-5000 M |
| ID: 76 mm,152 mm |
Typical properties of electrolytic ED copper foil for Li-Ion battery
| Classification | Unit | Requirement | Test Method | |||||||
| Foil Designation | / | IPC-4562A | ||||||||
| Nominal thickness | / | 6um | 7um | 8um | 9/10um | 12um | 15um | 20um | IPC-4562A | |
| Area Weight | g/㎡ | 54±1 | 63±1.25 | 72±1.5 | 89±1.8 | 107±2.2 | 133±2.8 | 178±3.6 |
IPC-TM-650 2.2.12.2 |
|
| Purity | ％ | ≥99.9 |
IPC-TM-650 2.3.15 |
|||||||
| Foil Profile | Shiny side (Ra) | um | 0.1-0.4 |
IPC-TM-650 2.3.17 |
||||||
| Matte side(Rz) | um | 0.8-2.0 | ||||||||
| Tensile Strength | R.T.(23℃) | Mpa | ＞280 |
IPC-TM-650 2.3.18 |
||||||
| H.T.(180℃) | ＞200 | |||||||||
| Elongation | R.T.(23℃) | ％ | ＞5 |
IPC-TM-650 2.3.18 |
||||||
| H.T.(180℃) | ＞3 | |||||||||
| Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
|||||||
| Anti-oxidization | R.T.(23℃) | day | 90 | / | ||||||
| H.T.(160℃) | Minutes | 15 | / | |||||||
Package: Wooden Carton
FAQ:
Q1: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: The MOQ is 100 kg.
Q4: Can you supply the sample?
A: We can free supply A4 samples,But not including dispatch cost
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6. Can you provide COA ?
A:Yes,we can provide
