Double Shiny Side Red 7um Thin ED Copper Roll for lithium battery

Double Shiny Side Red 7um Thin ED Copper Roll for lithium battery

    • Double Shiny Side Red 7um Thin ED Copper Roll for lithium battery
  • Double Shiny Side Red 7um Thin ED Copper Roll for lithium battery

    Product Details:

    Place of Origin: china
    Brand Name: JIMA
    Certification: SGS, ISO,Reach, RoHS
    Model Number: RACULP-S-B/G/R

    Payment & Shipping Terms:

    Minimum Order Quantity: 100kg
    Price: Negotiation
    Packaging Details: wooden carton
    Delivery Time: 5-15 days
    Payment Terms: T/T, L/C
    Supply Ability: 1000 Ton per month
    Contact Now
    Detailed Product Description
    Color: Red/Black Tensile Strength: ≥ 160 MPa
    Peel Strength: ≥ 1 N/mm Application:: Lithium Battery
    ID: 76mm OD: 360mm
    Width: Max 620mm NAME: Double Shiny Side Red 7um Thin Rolled Copper Roll For Lithium Battery
    High Light:

    large copper sheet

    ,

    sheet metal copper


    Double Shiny Side Red 7um Thin ED Copper Roll for lithium battery


    Quickly details

    Foil Thickness: 7-12 um
    Width: Max 610 mm
    Length: 500-5000 M
    Cu Alloy:C1100

    Features:

    Double shiny side ,superior rupture endurance.Excellent uniformity and infiltration.


    Compare between CA copper foil and ED copper foil

    . Width:  soft copper foil width ≤ 620mm, ED copper foil width ≤ 1380mm
    . Density: conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil. rolled copper foil higher density, the surface is relatively smooth,

    Use for :
    . Parallel hybrid electric vehicle(PHEV)
    . Lib: mobile phone.
    . lithium battery



    FAQ:
    Q1: Leading time ?
    A: 10-35 working days.


    Q2: What's your MOQ?
    A: The minimum order quantity is 10 kg.

    Q3. what is your standard width?
    A: rolled copper foil:520mm and 620mm,ed copper foil:1380mm
    we accept customization for the width. we can cut it into any size that you demand after pass discussing.


    Technical data sheet of RA rolled copper foil



    Thickness 9/10/12/15/20um Width ≤620mm
    Item Unit Parameter
    Thickness MM 0.009 0.01 0.012 0.015 0.02
    Grade C1100 C1100 C1100 C1100 C1100
    Copper content % ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
    Area Weight g/㎡ 80±3 95±3 107±4 134±4 178±6
    Double-sided(Ra) Um ≤0.17 ≤0.17 ≤0.17 ≤0.17 ≤0.17
    State Normal Mpa ≥380 ≥400 ≥400 ≥400 ≥400
    State Normal % ≥1.2 ≥1.4 ≥1.5 ≥1.5 ≥1.6
    Conductivity 20℃ IACS ≥95% ≥95% ≥95% ≥95% ≥95%
    High temperature oxidation resistance(180℃ 1hour) Qualified Qualified Qualified Qualified Qualified


    Remark: customization, max Width, under 620(±1)mm,

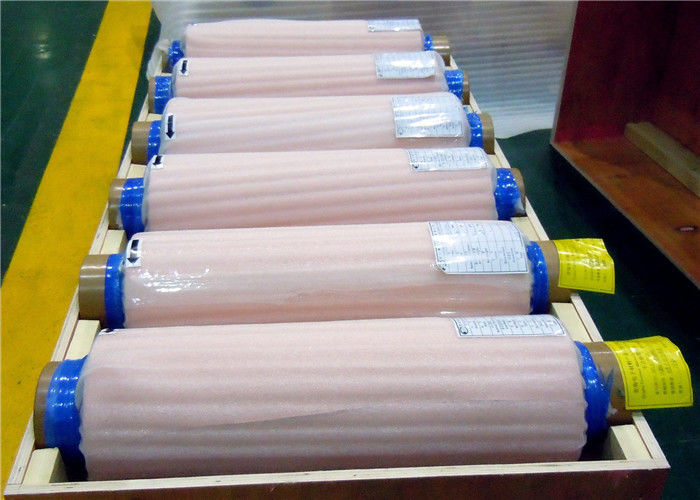

    Details Package: wooden box

    Double Shiny Side Red 7um Thin ED Copper Roll for lithium battery 0
